Cisco SM-X-1T3/E3 1x Port T3/E3 Plug-in Module Service Module
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Switch Modules

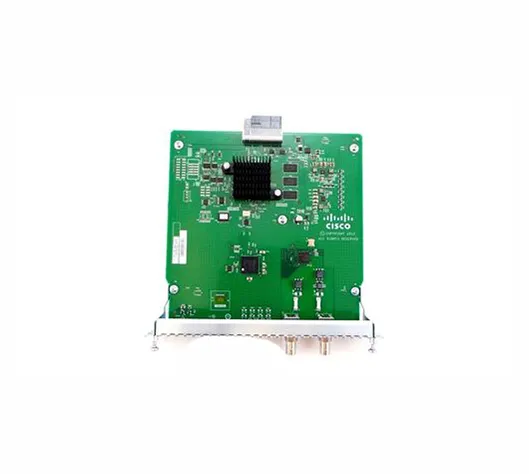

Cisco SM-X-1T3/E3 1x Port T3/E3 Plug-in Module Service Module
- Part number
- SM-X-1T3/E3
- One-port clear-channel T3/E3 service module
- Supports T3 at 44.736Mbps
- Supports E3 at 34.368Mbps
- Provides legacy high-speed serial WAN access
- Service-module architecture for ISR platforms
- Supports Cisco branch WAN integration
CONDITION
Ideal for
T3/E3 WAN, Legacy Carrier Circuits, Branch WAN, Service Providers
Cisco SM-X-1T3/E3 4000 Series 1x Port T3/E3 Plug-in Module Service Module for Cisco Integrated Services Routers
Overview
Cisco SM-X-1T3/E3 enhanced service module providing one software-configurable T3 or E3 interface with integrated CSU/DSU for Cisco ISR platforms.
Application & Use Cases
- T3 WAN connectivity
- E3 WAN connectivity
- Legacy carrier WAN services
- Branch-office WAN aggregation
Features
- 1 universal T3/E3 port
- Software-selectable T3 or E3 mode
- Integrated CSU/DSU
- Full-rate T3 support
- Full-rate E3 support
- HDLC, PPP and Frame Relay
Benefits
- One module supports T3 or E3 services
- Integrated CSU/DSU simplifies WAN deployment
- Software selection enables protocol flexibility
- Full-rate T3 supports legacy WAN circuits
- Full-rate E3 supports carrier connectivity
- OIR simplifies service-module maintenance
Key Specifications
- Product Family: Cisco ISR Service Modules
- Product Type: Enhanced T3/E3 Service Module
- Ports: 1
- T3 Rate: 44.736 Mbps
- E3 Rate: 34.368 Mbps
- Interface: Dual 75-ohm BNC
- CSU/DSU: Integrated
- Encapsulation: HDLC / PPP / Frame Relay
- Platform: ISR G2 / ISR 4451-X
- OIR: Supported
No compatible accessories listed for this product.
| Product Series | 4000 |
| Product Type | Expansion Module |
| Ethernet Standard | Gigabit Ethernet |
| OS Platform | PC |
| Quantity of Expansion Slots | 1 |
| Transciever-Modules Usage | Switching Network |
| QoS | Yes |
| Form Factor | Plug-in Module |
| Compliance Standards | RoHS,WEEE,REACH |
