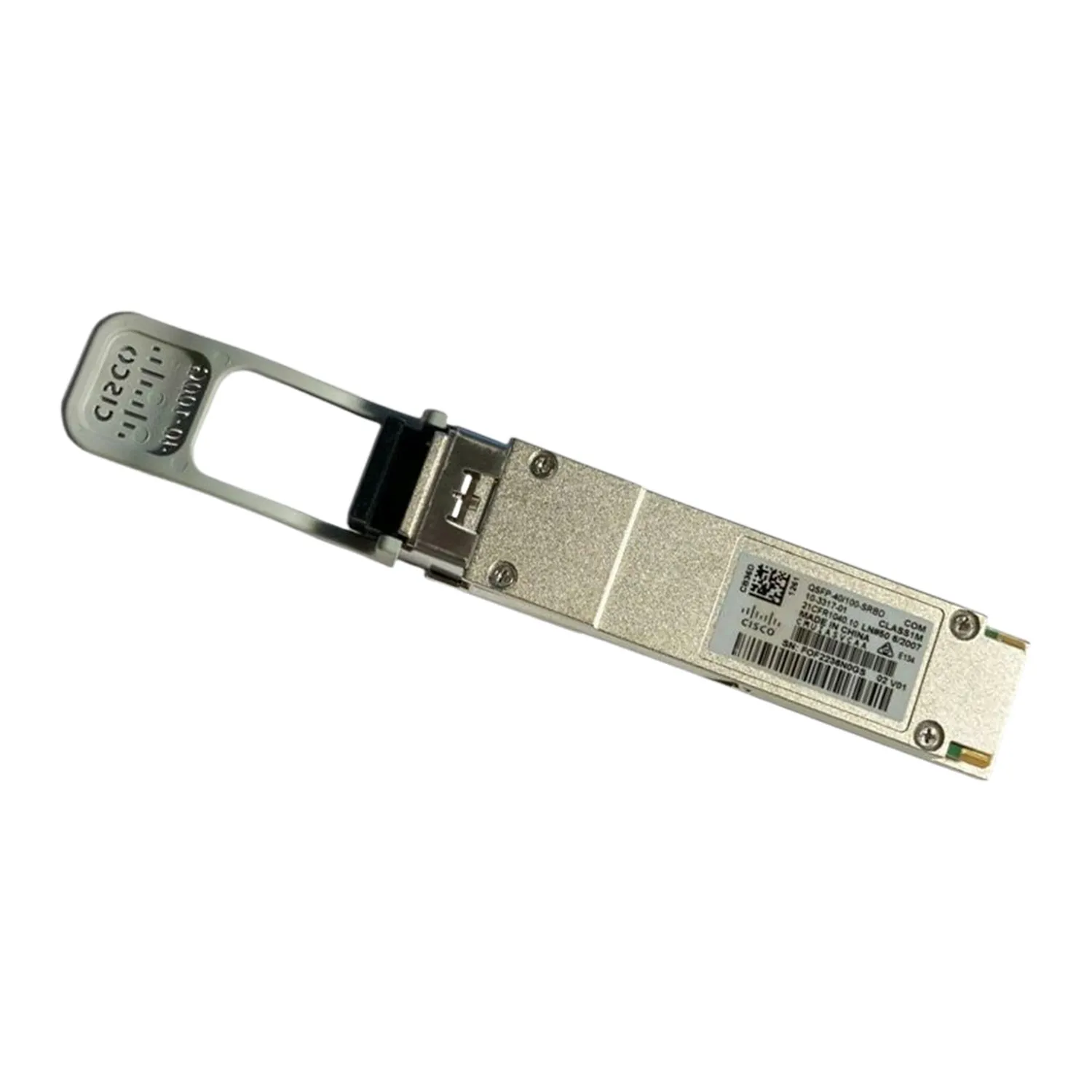

Cisco QSFP-40/100-SRBD= 40/100G QSFP SRBD Optical Transceiver
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoTransceivers
Cisco QSFP-40/100-SRBD= 40/100G QSFP SRBD Optical Transceiver
- Part number
- QSFP-40/100-SRBD=
- Dual-rate design supports 40G or 100G network migration
- BiDi optics reuse two-strand multimode fiber infrastructure
- Duplex LC enables standard MMF patch-panel connectivity
- 100G mode supports OM3 and OM4 short-reach links
- 40G mode extends to 150m on OM4 MMF
- QSFP format supports dense switch uplink deployments
CONDITION
Ideal for
Data Center Leaf-Spine, 40G Migration, 100G Migration, MMF
Cisco QSFP-40/100-SRBD= 40/100G QSFP Series SRBD optical transceiver supporting short-range multimode fiber connectivity Optical Transceiver
Overview
Cisco QSFP 40/100Gb dual-rate BiDi transceiver using duplex LC multimode fiber. It supports 40Gbps or 100Gbps operation over existing two-strand MMF infrastructure.
Application & Use Cases
- 40GbE multimode uplinks
- 100GbE multimode migration
- Data-center leaf-spine links
- Existing duplex MMF reuse
- High-density QSFP connectivity
Features
- Dual-rate 40/100GbE operation
- BiDi optical architecture
- Duplex LC connector
- 850nm optical range
- Two-strand multimode fiber
Key Specifications
- Modes: 40GbE / 100GbE
- Technology: BiDi
- Wavelength: 832–918nm range
- Connector: Duplex LC
- Fiber: Multimode Fiber
- 40G Reach: 100m OM3 / 150m OM4
- 100G Reach: 70m OM3 / 100m OM4
No compatible accessories listed for this product.
| Product Series | 4500-E |
| Product Type | QSFP+ |
| Maximum Data Transfer Rate | 40 Gb/s |
| Ethernet Standard | 40 Gigabit Ethernet |
| Fiber Optic Mode | Multi-mode |
| OS Platform | PC |
| Expansion Slots Details | QSFP+ |
| Transciever-Modules Usage | Switching Network |
| QoS | Yes |
| Maximum Distance Supported | 100 m |
| Form Factor | Connector |
| Compliance Standards | RoHS,WEEE,REACH |
