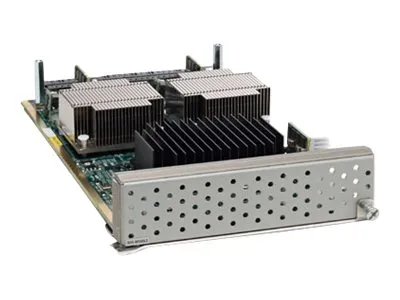

Cisco N55-M160L3-V2 Nexus 5000 Series 5596 L3 160Gbps Expansion Module
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Expansion Modules
Cisco N55-M160L3-V2 Nexus 5000 Series 5596 L3 160Gbps Expansion Module
- Part number
- N55-M160L3-V2
- Nexus 5500 Version 2 Layer 3 GEM
- Adds hardware Layer 3 forwarding capability
- Designed for Nexus 5500 platforms
- Supports modular Layer 3 expansion
- Integrates routing into Nexus data fabrics
- Supports high-scale data-center segmentation
CONDITION
Ideal for
Nexus 5500 Layer 3, Data Center Routing, Server Aggregation
Cisco Nexus 5000 Series Nexus 5596 Layer 3 GEM N55-M160L3-V2 160Gbps Layer 3 services 16K IPv4 host 8K multicast route capacity Expansion Module
Overview
Cisco Nexus 5596 Layer 3 Expansion Module Version 2 providing 160 Gbps of Layer 3 services with enhanced IPv4 host and multicast route table capabilities.
Application & Use Cases
- Nexus 5596 Layer 3 routing
- Data-center routing services
- Inter-VLAN routing
- Multicast routing
Features
- 160Gbps Layer 3 services
- Version 2 Layer 3 ASIC
- Nexus 5596 compatibility
- Enhanced host-entry scale
- Enhanced multicast-route scale
- Field-replaceable module
Benefits
- 160Gbps supports high-rate Layer 3 traffic
- Enhanced ASIC increases table capacity
- Supports Nexus 5596 routing services
- Multicast scale supports routed fabrics
- Modular design adds Layer 3 capability
- Version 2 extends routing table scale
Key Specifications
- Product Family: Cisco Nexus 5500
- Product Type: Layer 3 Expansion Module
- Platform: Nexus 5596
- Layer 3 Capacity: 160 Gbps
- Version: V2
- IPv4 Host Entries: Up to 16K with newer software support
- IPv4 Multicast Routes: Up to 8K with newer software support
- Installation: Power-down insertion/removal
- FRU: Yes
No compatible accessories listed for this product.
| Product Line | Nexus |
| Product Series | 5000 |
| Product Type | Expansion Module |
| Maximum Data Transfer Rate | 160 Gb/s |
| OS Platform | PC |
| Transciever-Modules Usage | Data Networking,Optical Network |
| Form Factor | Plug-in Module |
| Compliance Standards | RoHS,WEEE |
