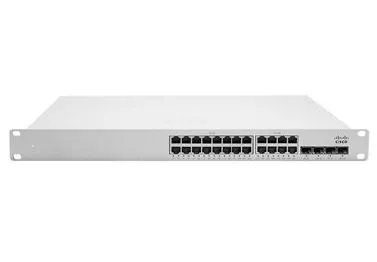

Cisco MS355-24X-HW 24x Ports RJ-45 2x SFP+ Network Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Meraki MS Series Switches
Cisco MS355-24X-HW 24x Ports RJ-45 2x SFP+ Network Switch
- Part number
- MS355-24X-HW
- 24 multigigabit access interfaces
- 740W PoE power capacity
- Two 40G QSFP+ uplinks
- Four 10G SFP+ uplinks
- 352Gbps switching capacity
- 400Gbps physical stacking
CONDITION
Ideal for
High-performance campus, multigig Wi-Fi, branch aggregation, PoE
Cisco MS355-24X-HW Meraki MS355 24x Ports 1000Base-T RJ-45 2x Ports 10GBase-X SFP+ Cloud Managed Network Switch
Overview
Cisco Meraki MS355-24X cloud-managed Layer 3 switch with 24 multigigabit access interfaces, 2 × 40G QSFP+ and 4 × 10G SFP+ uplinks, and 740W PoE capability.
Application & Use Cases
- High-performance campus access
- Multigigabit wireless access
- Branch and small-campus aggregation
- PoE/UPOE endpoint connectivity
Features
- 24 multigigabit access ports
- 2 × 40G QSFP+ uplinks
- 4 × 10G SFP+ uplinks
- 740W PoE capability
- 400Gbps physical stacking
- Meraki Dashboard management
Key Specifications
- Access Ports: 24 × multigigabit
- Access Speeds: 100M/1/2.5/5/10G
- 40G Uplinks: 2 × QSFP+
- 10G Uplinks: 4 × SFP+
- PoE Budget: 740W
- Switching Capacity: 352Gbps
- Forwarding Rate: 262Mpps
- Stacking: Physical/virtual
- Stack Bandwidth: 400Gbps
- MAC Table: 32K
- VLANs: 4094
- Jumbo Frame: 9600 bytes
- Layer 3: Static routing/OSPFv2
- VRRP: Warm spare
- DHCP: Server/relay
- IGMP Snooping: Supported
- 802.1X: RADIUS/MAB
- ACL: IPv4/IPv6
- Power: 100–240VAC
- Management: Meraki Dashboard
No compatible accessories listed for this product.
| Product Line | Meraki |
| Product Series | MS355 |
| Model | MS355-24X |
| Product Type | Layer 3 Switch |
| Quantity of Network Ports | 30 |
| Quantity of Expansion Slots | 6 |
| Quantity of SFP+ Slots | 4 |
| Quantity of Fixed Ports/Expansion Slots | 24 |
| Expansion Slots Details | SFP+,QSFP+ |
| Console Management Port | No |
| Uplink Port | Yes |
| USB Port | Yes |
| Stacking Port | Yes |
| POE/POE+ Supports | UPoE |
| PoE Budget | 740 Watts |
| Media Standard | Optical Fiber,Twisted Pair |
| Technology Standard | 10/100/1000Base-T,10GBase-T,10GBase-X,40GBase-X |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet,40 Gigabit Ethernet |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 512000 MAC Addresses |
| Jumbo Frames | 9578 Bytes |
| Supported Rack | 1U |
| Form Factor | Rack-mountable,Desktop PC |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 2050 Watts |
| Installed PSU | 1 |
