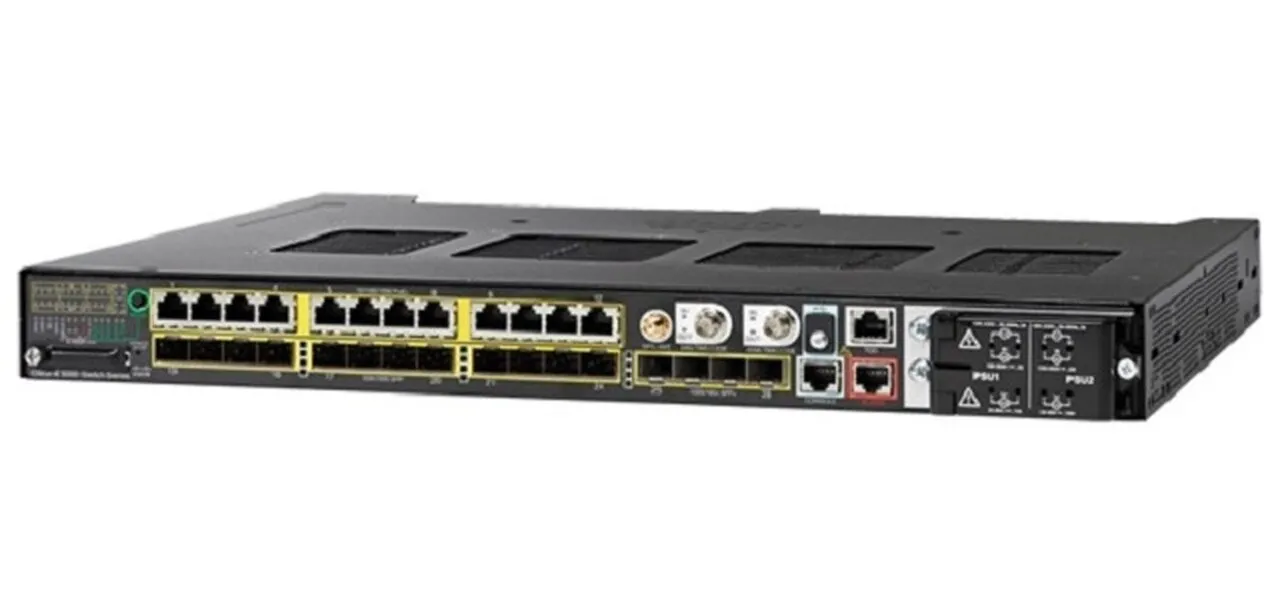

Cisco IE-5000-16S12P 16x RJ-45 12x SFP+ Network Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-5000-16S12P 16x RJ-45 12x SFP+ Network Switch
- Part number
- IE-5000-16S12P
Benefits
- 12 FE/GE SFP ports support dense fiber connectivity
- 12 GE PoE+ ports power industrial endpoints
- Four Gigabit SFP uplinks support aggregation
- Redundant AC/DC power supports critical deployments
- Industrial timing features support precision applications
- Rugged platform supports demanding IT/OT networks
CONDITION
Ideal for
Industrial Aggregation, Smart Grid Networks, Process Manufacturing, Transportation Systems, Industrial Backbone Networks
Cisco IE-5000-16S12P 16x Ports 1000Base-T Gigabit Ethernet RJ-45 12x Ports 10GBase-X 10 Gigabit Ethernet SFP+ 4x Ports 1000GBase-X 10 Gigabit Ethernet SFP Layer 3 Managed 1U Rack-mountable Network Switch
Overview
Cisco IE-5000-16S12P Industrial Ethernet switch with 12 FE/GE SFP fiber ports, 12 FE/GE PoE+ copper ports and 4 Gigabit SFP uplinks. Ruggedized industrial aggregation platform with LAN Base software.
Application & Use Cases
- Industrial aggregation and distribution
- Factory automation networks
- Industrial fiber and PoE convergence
- Transportation and rail infrastructure
- Utility and process-control networks
Features
- 12 × FE/GE SFP fiber ports
- 12 × FE/GE PoE+ copper ports
- 4 × Gigabit SFP uplinks
- LAN Base software
- Redundant field-replaceable power supplies
- Industrial timing and alarm interfaces
Benefits
- 12 SFP ports support industrial fiber access
- 12 PoE+ ports power connected endpoints
- Four Gigabit SFP uplinks support aggregation
- Redundant PSUs improve power resilience
- Industrial timing supports precision networks
- Rugged chassis suits harsh environments
Key Specifications
- Product Family: Cisco IE 5000
- Total Ports: 28
- Fiber Ports: 12 × FE/GE SFP
- PoE Ports: 12 × FE/GE PoE+
- Uplinks: 4 × 1GE SFP
- Software: LAN Base
- Forwarding Bandwidth: 28Gbps
- Switching Bandwidth: 56Gbps
- Forwarding Rate: 41.67Mpps
- MAC Addresses: 16,000
- VLANs: 1,005
- DRAM: 1GB
- Onboard Flash: 256MB
- SD Flash: 1GB removable
- Power: Dual redundant AC/DC PSU support
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 5000 |
| Model | IE-5000-16S12P |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 28 |
| Quantity of Network Ports | 28 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 16 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 16 |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 240 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Optical Fiber,Twisted Pair |
| Technology Standard | 10/100/1000Base-TX,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9216 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | Power Supply |
