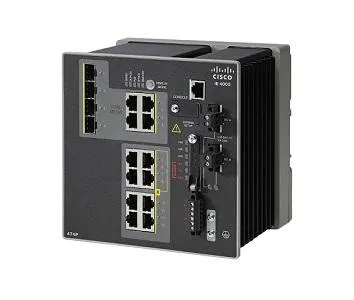

Cisco IE-4000-4T4P4G-E IE 4000 Series 12-Ports PoE+ FE Switch
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-4000-4T4P4G-E IE 4000 Series 12-Ports PoE+ FE Switch
- Part number
- IE-4000-4T4P4G-E
Benefits
- Four FE copper ports connect industrial devices
- Four FE PoE+ ports power field equipment
- Four GE combo uplinks support aggregation
- Rugged hardware supports industrial environments
- MRP improves industrial network resiliency
- Redundant DC options support critical networks
CONDITION
Ideal for
Industrial Automation, Factory Floors, Video Surveillance, Transportation Systems, Utility Networks
Cisco IE-4000-4T4P4G-E IE4000 Series 4x Ports 10/100Base-TX 4x Ports PoE+ 10/100Base-TX 4x Combo Gigabit SFP Ports L3 Managed Rail-mountable GE Network Switch
Overview
Cisco IE-4000-4T4P4G-E Industrial Ethernet switch with 4 Fast Ethernet copper downlinks, 4 Fast Ethernet PoE+ copper ports and 4 Gigabit Ethernet combo uplinks. Rugged industrial switching platform with LAN Base software.
Application & Use Cases
- Industrial automation and control
- Factory-floor PoE connectivity
- Industrial sensor and endpoint networks
- Transportation infrastructure
- Utility and process-control deployments
Features
- 4 × Fast Ethernet copper downlinks
- 4 × Fast Ethernet PoE+ downlinks
- 4 × Gigabit Ethernet combo uplinks
- LAN Base software
- Ruggedized industrial construction
Benefits
- PoE+ ports power industrial endpoints
- Gigabit combo uplinks support aggregation
- Mixed copper ports support diverse devices
- Rugged design supports harsh environments
- LAN Base enables managed switching
- Compact chassis fits industrial cabinets
Key Specifications
- Product Family: Cisco IE 4000
- Downlinks: 4 × FE copper
- PoE Downlinks: 4 × FE PoE+
- Uplinks: 4 × GE combo
- PoE Budget: Up to 120W
- Software: LAN Base
- PoE Standard: IEEE 802.3af/at
- Mounting: Industrial DIN-rail compatible
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 4000 |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 12 |
| Quantity of Network Ports | 12 |
| Stacking Port | No |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 4 |
| PoE Budget | 125 Watts |
| Ethernet Standard | Fast Ethernet,Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100Base-TX,1000Base-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Form Factor | Rail-mountable |
| Compliance Standards | RoHS,WEEE |
| Source of Power | DC Power Supply |
