Cisco IE-3400-8P2S-A IE 3400 8-Port PoE 2-Port SFP Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
Cisco Cisco Rugged Switches

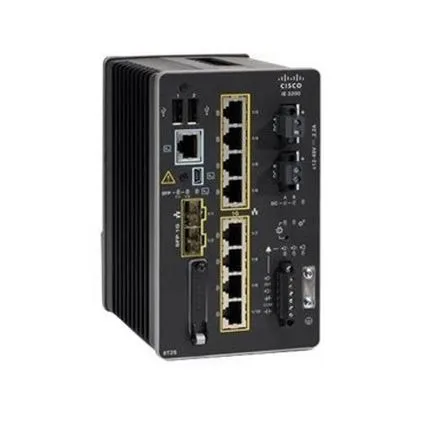

Cisco IE-3400-8P2S-A IE 3400 8-Port PoE 2-Port SFP Switch
- Part number
- IE-3400-8P2S-A
- 8-port industrial PoE+ switching
- 240W base PoE capacity
- 480W expanded PoE capacity
- 16K MAC table scale
- 3000 IPv4 indirect routes
- 4GB DRAM architecture
CONDITION
Ideal for
Industrial PoE, Factory Automation, OT Edge, Industrial Wireless
Cisco IE-3400-8P2S-A Cisco IE 3400 Series industrial switch with 8x PoE ports and 2x SFP ports for industrial network connectivity Managed Switch
Overview
Cisco Catalyst IE3400 rugged industrial PoE+ switch with 8 x 10/100/1000 copper ports, 2 x 100/1000 SFP ports and Network Advantage licensing.
Application & Use Cases
- Industrial PoE networks
- Factory automation
- Industrial wireless
- Machine connectivity
- OT network aggregation
Features
- 8 GE PoE/PoE+ copper ports
- 2 x 100/1000 SFP
- 240W base PoE
- 480W expanded PoE
- Network Advantage
- Dual DC inputs
Key Specifications
- Total Ports: 10
- Copper: 8 x 10/100/1000
- SFP: 2 x 100/1000
- PoE: PoE+
- Base PoE: 240W
- Expanded PoE: 480W
- License: Network Advantage
- Forwarding: Line rate
- Queues: 8
- MAC: 16K
- IGMP: 1K groups
- VLANs: 256
- IPv4 Routes: 3000
- IPv6 Routes: 512
- STP: 128 instances
- ACL: 3K entries
- DRAM: 4GB
- Flash: 1.5GB
- Jumbo: 8996 bytes
- Input: 9.6–60VDC redundant
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | IE3400 |
| Model | IE-3400-8P2S-A |
| Product Type | Ethernet Switch |
| Quantity of Network Ports | 10 |
| Quantity of Expansion Slots | 1 |
| Quantity of Fixed Ports/Expansion Slots | 10 |
| Quantity of SFP Slots | 2 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Console Management Port | Yes |
| Uplink Port | Yes |
| USB Port | Yes |
| Stacking Port | No |
| POE/POE+ Supports | PoE+ |
| PoE Budget | 480 Watts |
| Technology Standard | 1000Base-X,10/100/1000Base-T |
| Ethernet Standard | Gigabit Ethernet |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 8996 Bytes |
| Compliance Standards | WEEE |
| Airflow Direction | Side-to-Side Airflow |
| Redundant Source of Power | Yes |
| Source of Power | DC Power Supply |
