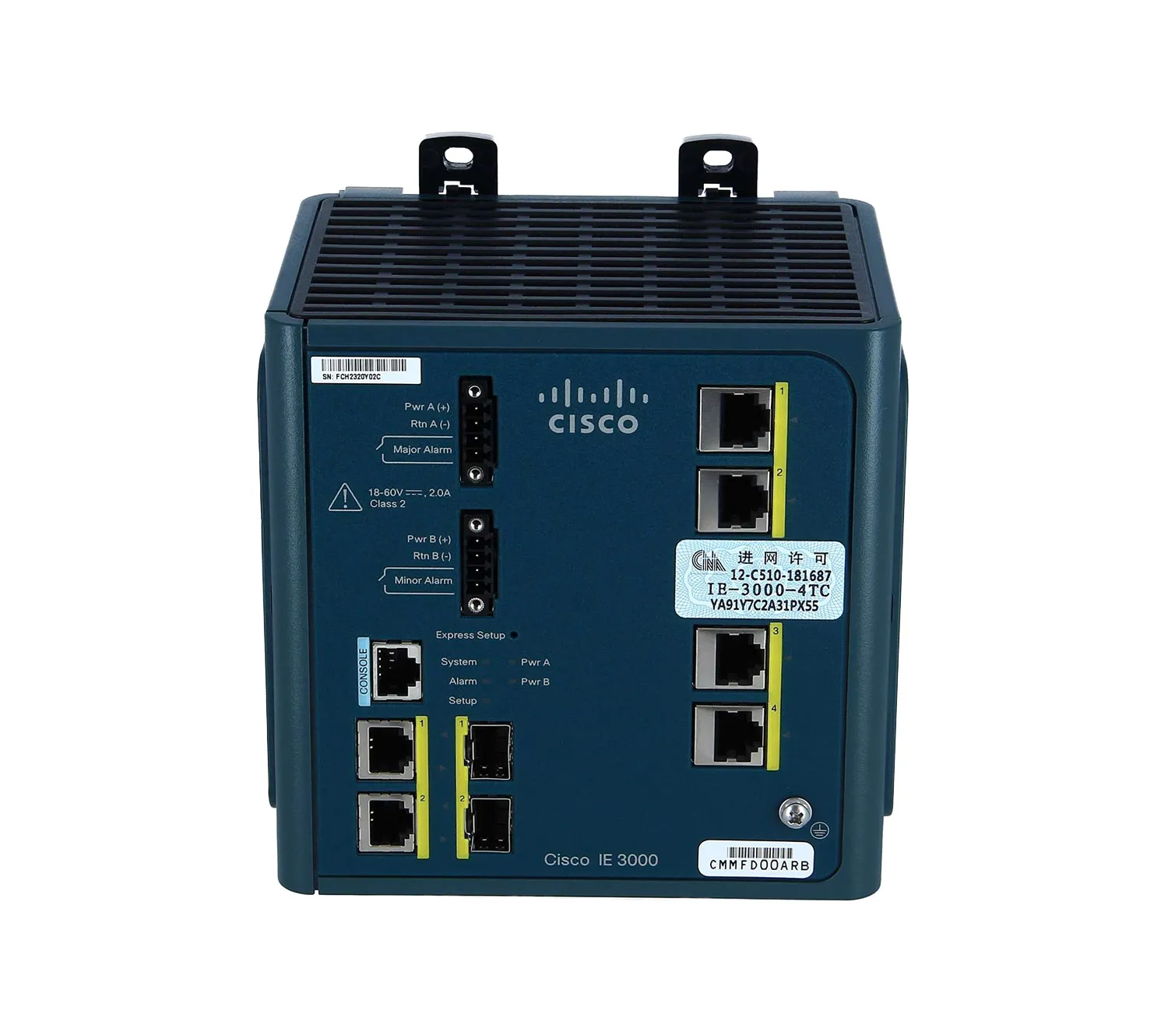

Cisco IE-3000-4TC-RF 3000 IE 4-Ports Managed Network Switch
Refurbished
![IE-3000-4TC-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-3000-4TC-RF 3000 IE 4-Ports Managed Network Switch
- Part number
- IE-3000-4TC-RF
- Four-port industrial Ethernet switch configuration
- Supports rugged industrial deployment
- Provides compact DIN-rail switching architecture
- Supports 10/100 copper Ethernet connectivity
- Supports industrial Layer 2 networking
- Refurbished Cisco configuration
CONDITION
Ideal for
Industrial Ethernet, Factory Automation, Utility OT, Transportation Networks
Cisco IE-3000-4TC-RF - Industrial Ethernet 3000 Series IE-3000-4TC 4x FE Ports 10/100Base-TX 2x SFP Combo Ports Layer 2 managed DIN rail mountable Fast Ethernet Switch
Overview
Cisco IE-3000-4TC-RF is a Cisco Industrial Ethernet 3000 switch with four 10/100 Ethernet ports and two dual-purpose Gigabit uplinks for industrial automation and harsh-environment networking.
Application & Use Cases
- Industrial automation networks
- Factory-floor Ethernet access
- Energy and process control
- Intelligent transportation systems
- Substation Ethernet networks
Features
- Four 10/100 Ethernet ports
- Two dual-purpose Gigabit uplinks
- 10/100/1000 copper or SFP uplinks
- Industrial DIN-rail form factor
- 18-60VDC input
- LAN Base software
- IEEE 1588v2 support
Benefits
- Compact industrial Ethernet switching
- Supports harsh-environment deployment
- Flexible copper and fiber uplinks
- Wide DC input range
- Supports industrial automation traffic
- Supports precision timing networks
Key Specifications
- Access Ports: 4 x 10/100
- Uplinks: 2 dual-purpose Gigabit
- Uplink Copper: 10/100/1000BASE-T
- Uplink Fiber: SFP
- Switching Fabric: 16 Gbps
- Forwarding Rate: 6.5 Mpps
- DRAM: 128MB
- Flash: 64MB CompactFlash
- MAC Addresses: Up to 8,000 Layer 2
- Jumbo Frame: Up to 9018 bytes on Gigabit uplink
- Input: 18-60VDC
- Cooling: Convection
- Operating Temperature: Up to -40°C to +75°C
- Software: LAN Base
- SKU Suffix: -RF Cisco Refresh
No compatible accessories listed for this product.
| Product Series | IE-3000 |
| Product Line | Industrial Ethernet |
| Model | IE-3000-4TC |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 6 |
| Quantity of Network Ports | 6 |
| Stacking Port | No |
| Quantity of Expansion Slots | 2 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 2 |
| Ethernet Standard | Fast Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100Base-TX,10GBase-X |
| Supported Layer Standard | Layer 2 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Form Factor | Rail-mountable |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | DC Power Supply |
