Cisco IE-2000U-16TCGP-RF 2000U IE 18-Ports Managed Network Switch
Refurbished
![IE-2000U-16TCGP-RF]()
![IE-2000U-16TCGP-RF]()

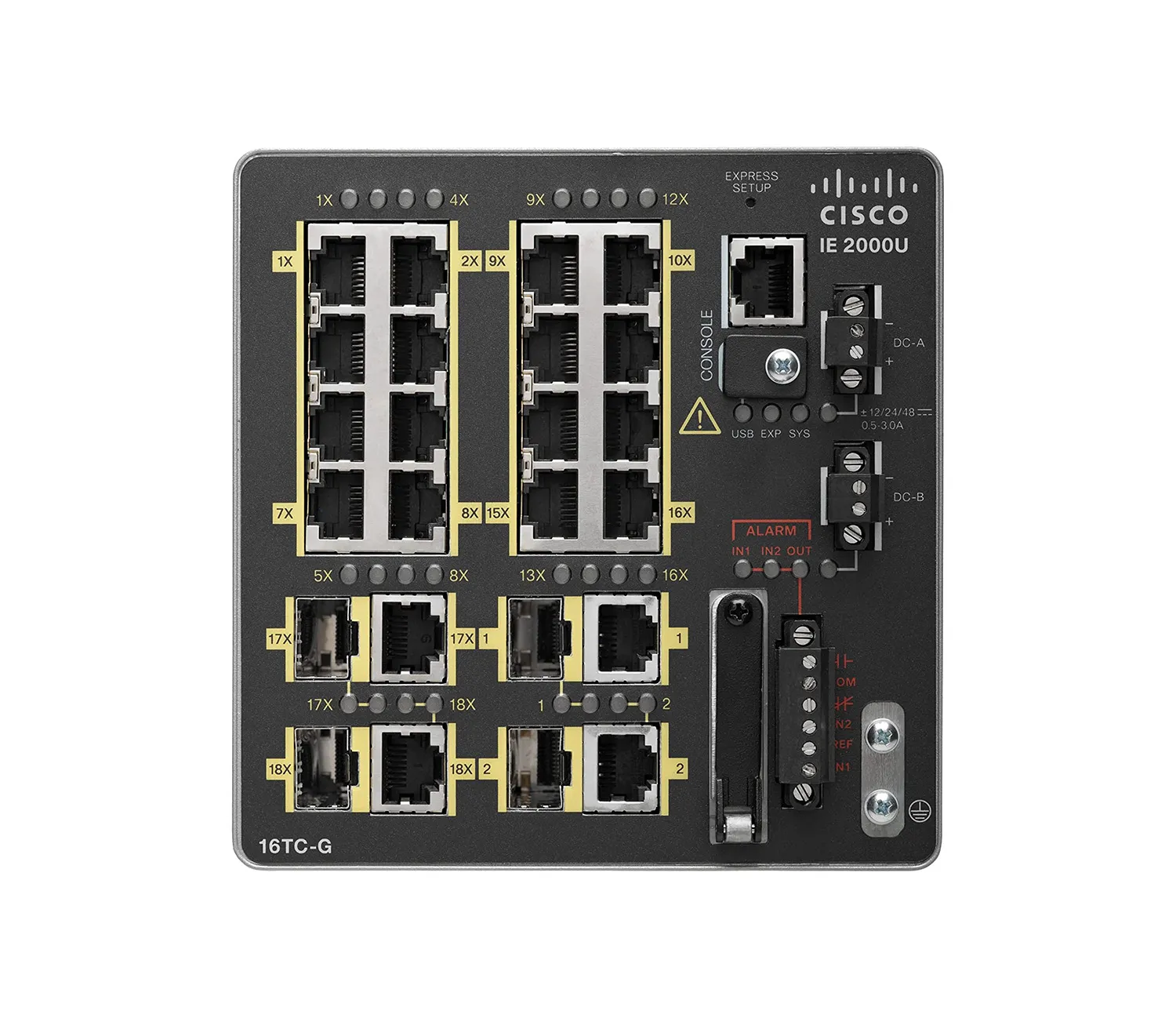

Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-2000U-16TCGP-RF 2000U IE 18-Ports Managed Network Switch
- Part number
- IE-2000U-16TCGP-RF
- Four PoE industrial interfaces
- Sixteen Fast Ethernet ports
- Dual Gigabit dual-purpose uplinks
- IEEE 1588 synchronization
- LAN Base with 1588
- PoE+ endpoint capability
CONDITION
Ideal for
Utility automation, substation PoE, connected-grid OT, industrial control
Cisco IE-2000U-16TCGP-RF - Industrial Ethernet IE 2000U Series IE-2000U-16TC 16x FE Ports 10/100BAse-TX 2x GE Combo Ports Layer 2 Managed Din Rail-Mountable Fast Ethernet Network Switch
Overview
Cisco IE 2000U-16TC-GP industrial connected-grid switch with 16 Fast Ethernet ports, 4 PoE ports and 2 Gigabit dual-purpose uplinks, supporting IEEE 1588.
Application & Use Cases
- Utility and connected-grid access
- PoE industrial endpoints
- Substation networking
- Time-synchronized OT networks
Features
- 16 × 10/100BASE-T
- 4 × PoE ports
- 2 × GE dual-purpose uplinks
- IEEE 1588
- LAN Base with 1588
- PoE/PoE+ operation with constraints
Key Specifications
- Base Ports: 16 × FE
- PoE Ports: 4
- Uplinks: 2 × GE dual-purpose
- Copper Uplink: 10/100/1000
- Fiber Uplink: SFP module slots
- IEEE 1588: Supported
- Software: LAN Base with 1588
- PoE: Supported
- PoE+: Supported with constraints
- VLAN: Supported
- QoS: Supported
- STP: Supported
- RSTP: Supported
- IGMP Snooping: Supported
- REP: Supported
- Port Security: Supported
- SNMP: Supported
- Management: Cisco IOS
- Form Factor: Industrial
- Mounting: DIN rail
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | IE 2000U |
| Model | IE-2000U-16TC |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | PoE |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 20 |
| Quantity of Network Ports | 20 |
| Uplink Port | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 2 |
| Quantity of SFP Slots | 4 |
| PoE Budget | 120 Watts |
| Ethernet Standard | Fast Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100Base-TX |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9000 Bytes |
| Form Factor | Rail-mountable |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | DC Power Supply |
