Cisco IE-2000-16TC-GE-RF 2000 IE 20-Ports Managed Network Switch
Refurbished

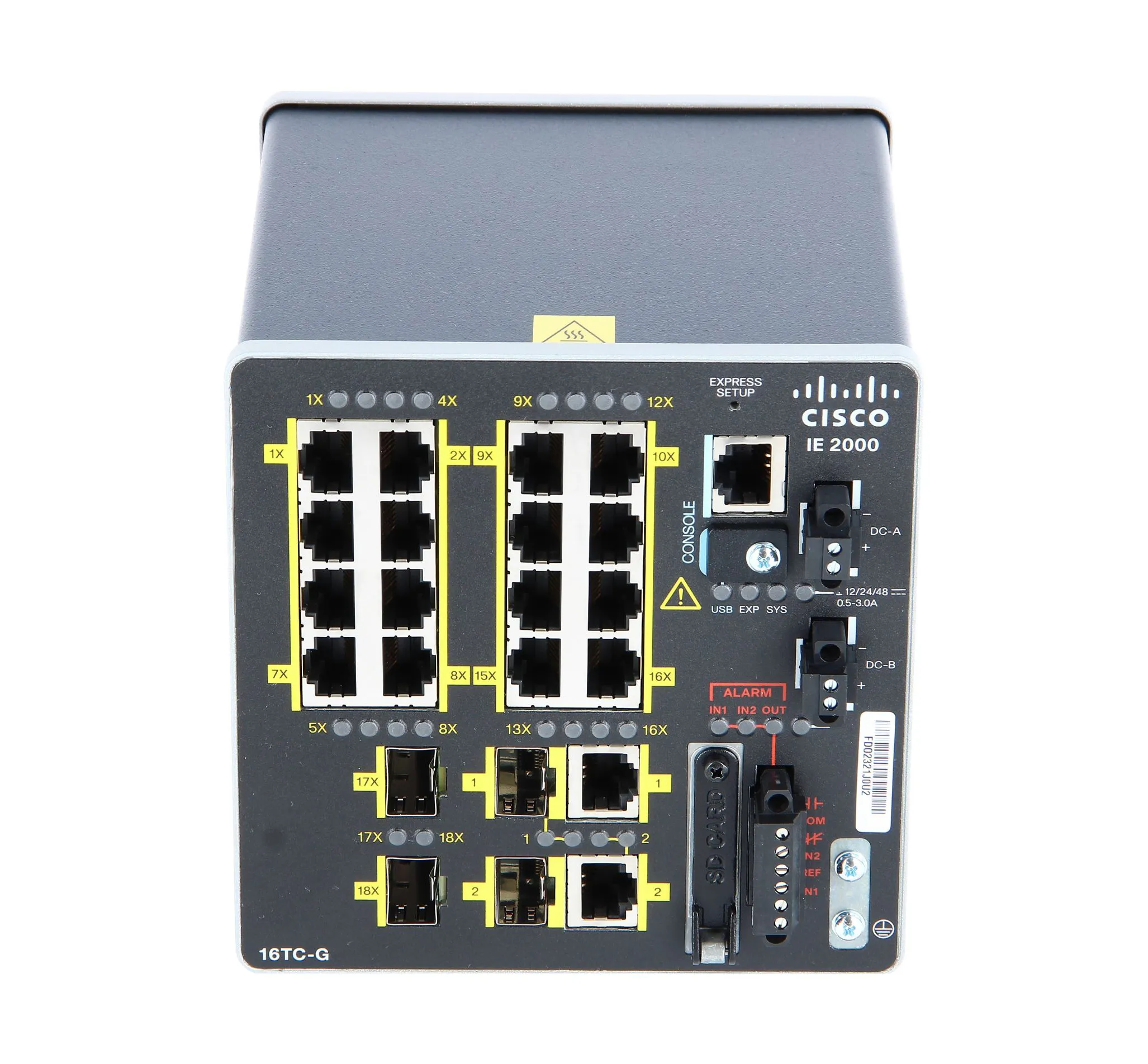

![IE-2000-16TC-GE-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-2000-16TC-GE-RF 2000 IE 20-Ports Managed Network Switch
- Part number
- IE-2000-16TC-GE-RF
- 16 Fast Ethernet copper access ports
- Dual Gigabit dual-purpose interfaces
- Dual Fast Ethernet SFP interfaces
- IEEE 1588 time synchronization
- LAN Base switching capabilities
- Optional Layer 2 NAT upgrade
CONDITION
Ideal for
Industrial Ethernet access, synchronized OT networks, PLC/HMI, fiber-connected cabinets
Cisco IE-2000-16TC-GE-RF - Industrial Ethernet 2000 Series 16x Ports 10/100Base-TX 2x SFP Ports Layer 2 Managed Rail-mountable Fast Ethernet Network Switch
Overview
Cisco IE 2000 industrial switch with 16 Fast Ethernet copper ports, 2 Gigabit dual-purpose interfaces and 2 Fast Ethernet SFP interfaces; Cisco manufacturer documentation identifies the corresponding -GE configuration as LAN Base with IEEE 1588.
Application & Use Cases
- Industrial access and aggregation
- Time-synchronized industrial networks
- PLC and HMI connectivity
- Fiber uplink within control environments
Features
- 16 × 10/100BASE-T copper ports
- 2 × Gigabit dual-purpose ports
- 2 × 100Mbps SFP interfaces
- IEEE 1588 support
- LAN Base functionality
- DIN-rail industrial form factor
Key Specifications
- Total Ports: 20
- Copper Downlinks: 16 × 10/100
- GE Dual-Purpose: 2
- FE SFP: 2
- Combo Interfaces: Copper/SFP dual-purpose
- Software: LAN Base
- IEEE 1588: Supported
- L2 NAT: License upgrade capability
- VLAN: 802.1Q
- QoS: Supported
- STP: Supported
- RSTP: Supported
- IGMP Snooping: Supported
- Port Security: Supported
- Storm Control: Supported
- SNMP: Supported
- SSH/HTTPS: Management support
- Form Factor: Industrial compact
- Mounting: DIN rail
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | IE-2000 |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 20 |
| Quantity of Network Ports | 20 |
| Uplink Port | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 2 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 4 |
| Ethernet Standard | Fast Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100Base-TX |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9000 Bytes |
| Form Factor | Rail-mountable |
| Compliance Standards | RoHS |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | DC Power Supply |
