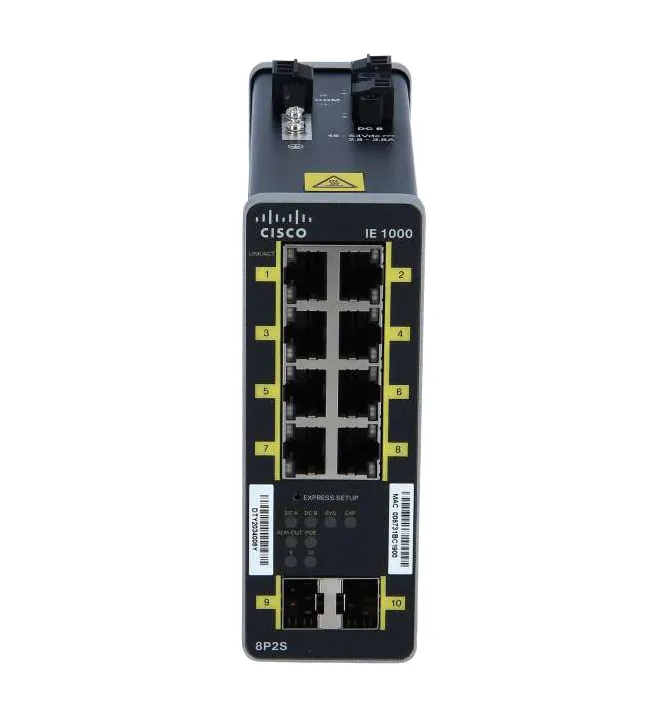

Cisco IE-1000-8P2S-LM-RF 1000 IE 8-Ports Series FE PoE+ Switch
Refurbished
![IE-1000-8P2S-LM-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-1000-8P2S-LM-RF 1000 IE 8-Ports Series FE PoE+ Switch
- Part number
- IE-1000-8P2S-LM-RF
- Eight PoE/PoE+ Fast Ethernet ports
- 180W PoE power budget
- Dual GE SFP uplinks
- 2.8Gbps forwarding bandwidth
- 5.6Gbps switching bandwidth
- -40°C industrial operating capability
CONDITION
Ideal for
Industrial PoE, sensors, cameras, control cabinets, OT access
Cisco IE-1000-8P2S-LM-RF - Industrial Ethernet 1000 Series 8x Ports 100Base-TX 2x SFP Ports Layer 2 Managed Rail-mountable Fast Ethernet network Switch
Overview
Cisco IE 1000 compact DIN-rail industrial PoE switch with 8 Fast Ethernet PoE/PoE+ ports and 2 Gigabit SFP uplinks.
Application & Use Cases
- Industrial PoE device access
- Compact control cabinets
- IP camera and sensor connectivity
- Fiber uplinks in industrial networks
Features
- 8 × Fast Ethernet PoE/PoE+
- 2 × GE SFP uplinks
- 180W PoE budget
- 12–54V-class industrial power architecture
- DIN-rail mounting
- Industrial environmental specifications
Key Specifications
- Total Ports: 10
- PoE Ports: 8
- PoE Speed: Fast Ethernet
- PoE Standards: 802.3af/at
- PoE Budget: 180W
- Uplinks: 2 × GE SFP
- Forwarding Bandwidth: 2.8Gbps
- Switching Bandwidth: 5.6Gbps
- DRAM: 128MB DDR2
- Flash: 160MB
- Input Voltage: 48–54V for PoE model
- Power Consumption: 10.6W without PoE
- Alarm I/O: Supported
- Operating Temperature: -40°C to +70°C in specified enclosure
- Humidity: 5–95% non-condensing
- IP Rating: IP30
- Mounting: DIN rail
- Altitude: Up to 13,800ft operating
- MTBF: 374,052 hours
- Management: Industrial Ethernet 1000 software
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 1000 |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 10 |
| Quantity of Network Ports | 10 |
| Uplink Port | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 2 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 2 |
| PoE Budget | 180 Watts |
| Ethernet Standard | Fast Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-TX,10GBase-X |
| Supported Layer Standard | Layer 2 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Form Factor | Rail-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Source of Power | DC Power Supply |
