Cisco IE-1000-6T2T-LM 1000 IE 6-Ports Ethernet Network Switch
New

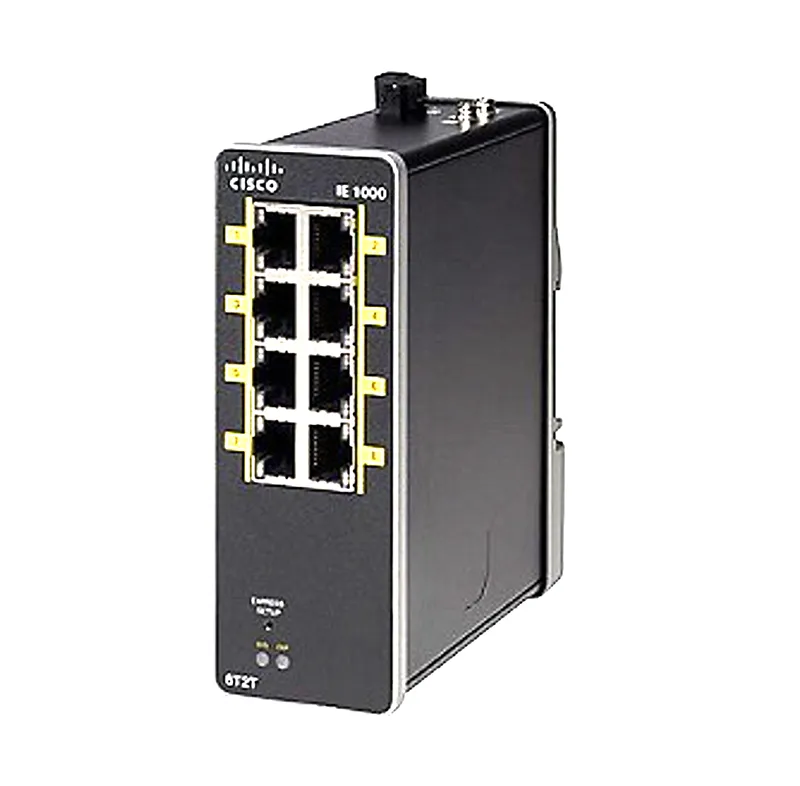

![IE-1000-6T2T-LM]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-1000-6T2T-LM 1000 IE 6-Ports Ethernet Network Switch
- Part number
- IE-1000-6T2T-LM
Benefits
- Six Gigabit copper ports support industrial endpoints
- Two Gigabit uplinks support network aggregation
- Compact design fits space-constrained installations
- Managed switching supports industrial segmentation
- QoS supports prioritized OT application traffic
- Industrial construction supports distributed field use
CONDITION
Ideal for
Industrial Automation, Factory Networks, Control Systems, Industrial Edge, Small OT Networks
Cisco IE-1000-6T2T-LM Industrial Ethernet Switch 6x Fast Ethernet RJ-45 Ports 2x Fast Ethernet Copper Uplink Ports Layer 2 Managed DIN Rail Switch LAN Lite
Overview
Cisco IE-1000-6T2T-LM is a compact DIN-rail industrial Ethernet switch with 6 Fast Ethernet downlinks and 2 Fast Ethernet copper uplinks. The compact eight-port configuration targets industrial edge, control, and monitoring networks where PoE is not required.
Application & Use Cases
- Industrial automation control networks
- DIN-rail panel networking
- Factory-floor Ethernet connectivity
- Industrial sensor and controller networks
- Remote monitoring infrastructure
- Compact machine-level Ethernet deployments
Features
- 6 Fast Ethernet copper downlinks
- 2 Fast Ethernet copper uplinks
- 8 total copper ports
- Compact DIN-rail design
- 12–24V DC input architecture
- 2.8 Gbps maximum forwarding bandwidth
- 5.6 Gbps maximum switching bandwidth
- Industrial Ethernet/IP support
Benefits
- Six downlinks connect industrial endpoints
- Two uplinks support network aggregation
- Compact design fits control cabinets
- DIN-rail mounting simplifies installation
- Low-power design suits edge deployments
- Industrial protocols support automation networks
Key Specifications
- Series: Cisco IE 1000
- Total Ports: 8
- Downlinks: 6 x Fast Ethernet
- Uplinks: 2 x Fast Ethernet
- Input Voltage: 12–24V DC
- Forwarding Bandwidth: 2.8 Gbps
- Switching Bandwidth: 5.6 Gbps
- Mounting: DIN rail
- PoE: Not configured
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 1000 |
| Model | IE-1000-8P2S |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 8 |
| Quantity of Network Ports | 8 |
| Uplink Port | Yes |
| Stacking Port | No |
| Ethernet Standard | Fast Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-TX |
| Supported Layer Standard | Layer 2 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Form Factor | Rail-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Source of Power | DC Power Supply |
