Cisco IE-1000-4T1T-LM 1000 IE 5x Ports 10/100Base-TX L2 Managed Switch
New

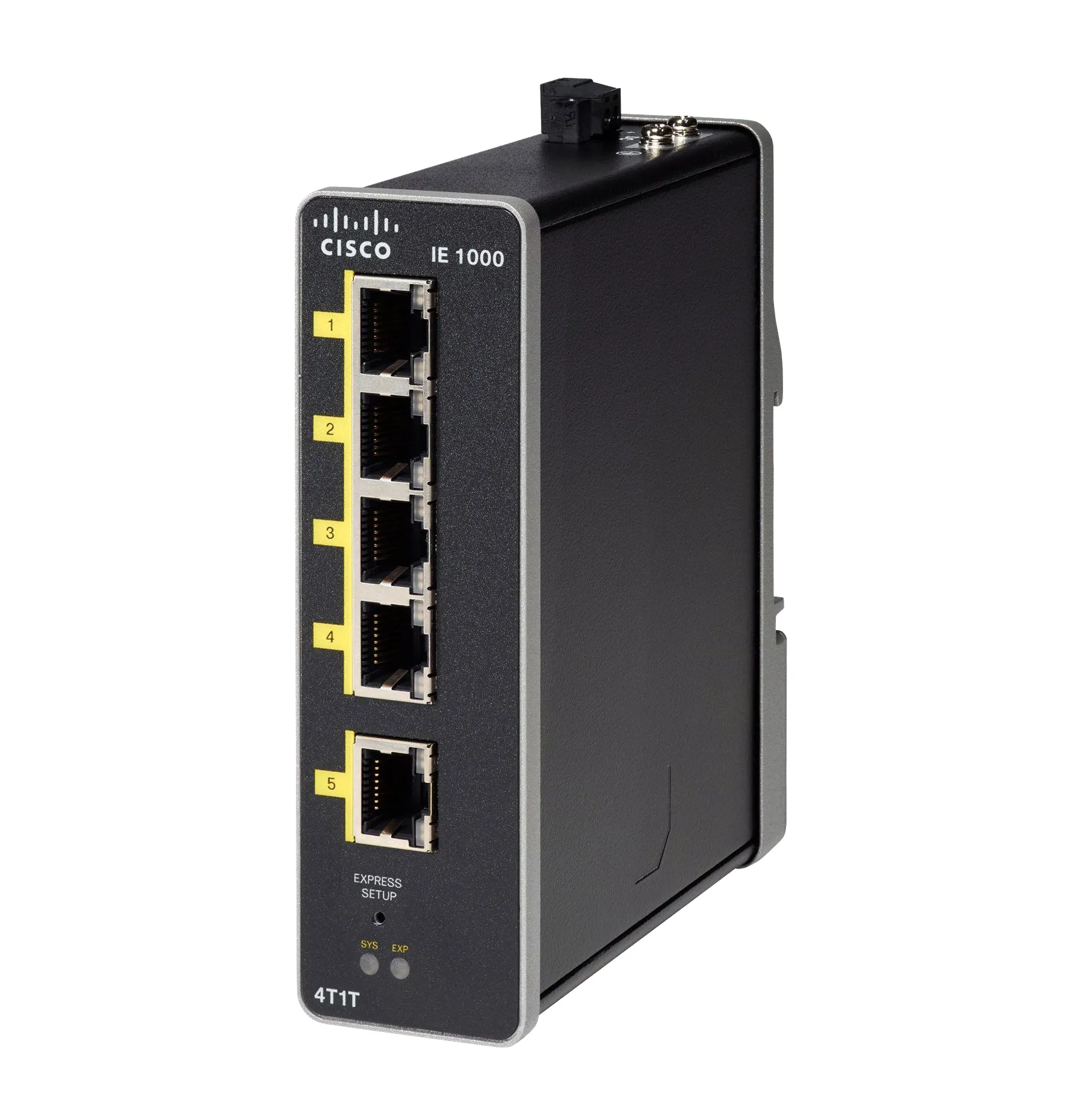

![IE-1000-4T1T-LM]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-1000-4T1T-LM 1000 IE 5x Ports 10/100Base-TX L2 Managed Switch
- Part number
- IE-1000-4T1T-LM
Benefits
- Four Gigabit copper ports support field connectivity
- Additional Gigabit uplink supports aggregation
- Compact enclosure simplifies industrial deployment
- Managed switching supports basic VLAN segmentation
- QoS supports prioritized industrial traffic
- Industrial design suits distributed control locations
CONDITION
Ideal for
Industrial Automation, Control Panels, Factory Networks, Industrial Edge, Compact OT Installations
Cisco IE-1000-4T1T-LM Industrial Ethernet 1000 Series 5x Ports 10/100Base-TX Layer 2 Managed Rail-mountable Fast Ethernet Network Switch
Overview
Cisco IE-1000-4T1T-LM is a compact DIN-rail industrial Ethernet switch with 4 Fast Ethernet downlinks and 1 Fast Ethernet copper uplink. Its five-port architecture is designed for machine-level and compact industrial network installations.
Application & Use Cases
- Machine-level industrial Ethernet
- Factory automation panels
- Industrial controller connectivity
- Sensor and actuator network aggregation
- Compact remote industrial sites
- DIN-rail control cabinet deployments
Features
- 4 Fast Ethernet downlinks
- 1 Fast Ethernet uplink
- 5 total copper ports
- Compact DIN-rail mounting
- 12–24V DC input architecture
- 2.8 Gbps maximum forwarding bandwidth
- 5.6 Gbps maximum switching bandwidth
- Industrial Ethernet/IP support
Benefits
- Four downlinks connect machine devices
- Dedicated uplink supports upstream aggregation
- Compact chassis fits control panels
- DIN-rail mounting speeds installation
- 12–24V DC input suits industrial power
- Industrial features support automation networks
Key Specifications
- Series: Cisco IE 1000
- Total Ports: 5
- Downlinks: 4 x Fast Ethernet
- Uplink: 1 x Fast Ethernet
- Input Voltage: 12–24V DC
- Forwarding Bandwidth: 2.8 Gbps
- Switching Bandwidth: 5.6 Gbps
- Mounting: DIN rail
- Power: DC input
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 1000 |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | No |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 5 |
| Quantity of Network Ports | 5 |
| Uplink Port | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 5 |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Optical Fiber |
| Technology Standard | 10/100/1000Base-TX |
| Supported Layer Standard | Layer 2 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Form Factor | Rail-mountable |
| Compliance Standards | RoHS,WEEE |
| Source of Power | DC Power Supply |
