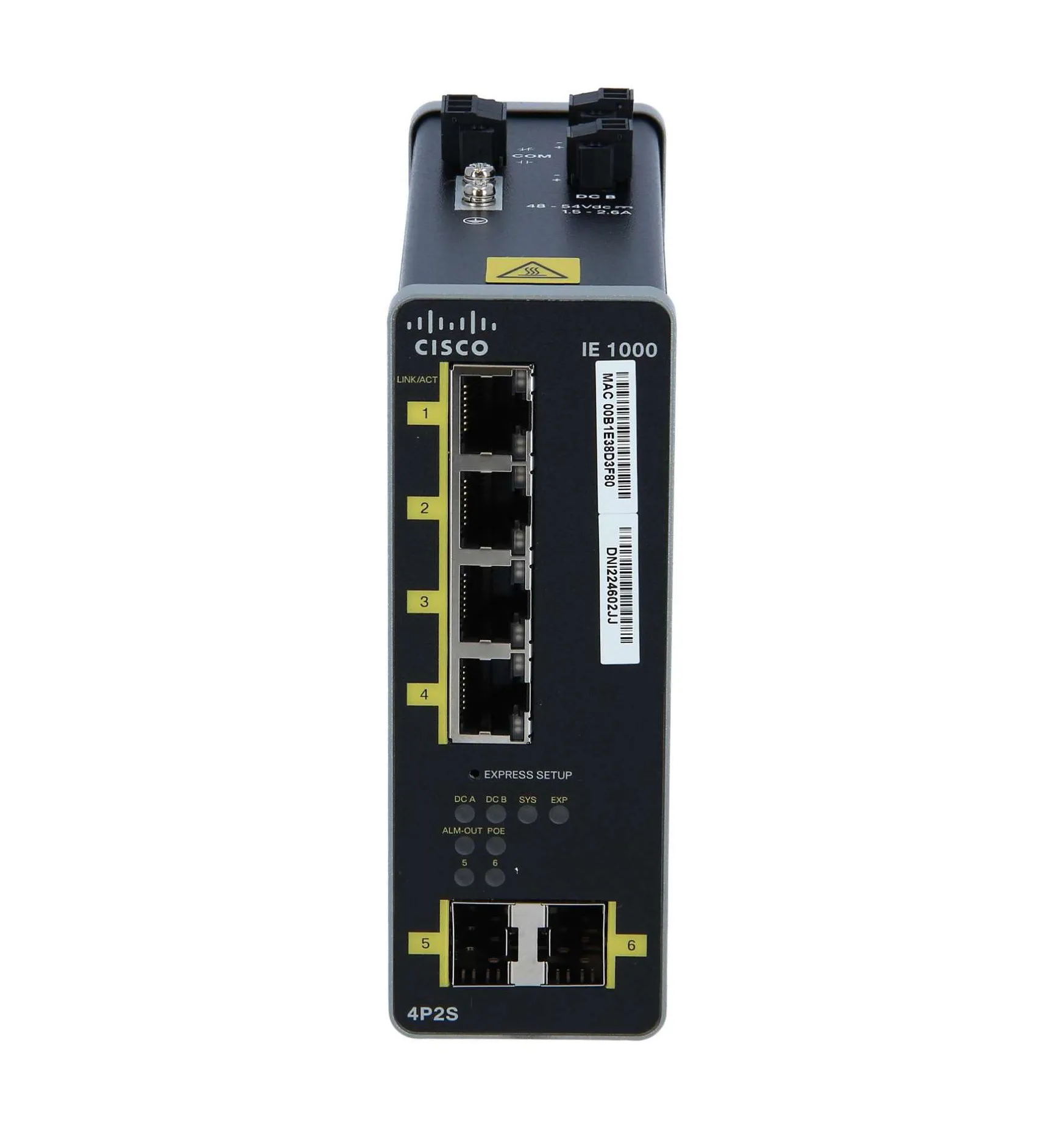

Cisco IE-1000-4P2S-LM-RF 1000 IE 4-Ports Managed Network Switch
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Industrial Switches
Cisco IE-1000-4P2S-LM-RF 1000 IE 4-Ports Managed Network Switch
- Part number
- IE-1000-4P2S-LM-RF
- Four PoE/PoE+ Fast Ethernet ports
- 120W PoE power budget
- Dual Gigabit SFP uplinks
- 2.8Gbps forwarding bandwidth
- 5.6Gbps switching bandwidth
- -40°C industrial operating specification
CONDITION
Ideal for
Industrial PoE, automation cabinets, cameras, sensors, OT networks
Cisco IE-1000-4P2S-LM-RF - Industrial Ethernet 1000 Series 5x Ports 10/100Base-TX Layer 2 Managed Rail-mountable Fast Ethernet Network Switch
Overview
Cisco IE 1000 compact DIN-rail industrial switch with 4 Fast Ethernet PoE/PoE+ ports and 2 Gigabit SFP uplinks, 120W PoE budget.
Application & Use Cases
- Industrial PoE access
- Compact automation cabinets
- IP cameras and sensors
- Fiber-connected industrial endpoints
Features
- 4 × FE PoE/PoE+ ports
- 2 × GE SFP uplinks
- 120W PoE budget
- DIN-rail chassis
- Industrial alarm I/O
- Wide environmental operating range
Key Specifications
- Total Ports: 6
- PoE Ports: 4
- PoE Standard: 802.3af/at
- PoE Budget: 120W
- Uplinks: 2 × GE SFP
- Forwarding Bandwidth: 2.8Gbps
- Switching Bandwidth: 5.6Gbps
- DRAM: 128MB DDR2
- Flash: 160MB
- Input Voltage: 48–54V
- Power Consumption: 8.6W without PoE
- Alarm: Alarm I/O
- Operating Temperature: -40°C to +70°C specified
- Humidity: 5–95% non-condensing
- IP Rating: IP30
- Mounting: DIN rail
- Operating Altitude: Up to 13,800ft
- MTBF: 374,052 hours
- Management: Industrial Ethernet 1000 software
No compatible accessories listed for this product.
| Product Line | Industrial Ethernet |
| Product Series | 1000 |
| Product Type | Ethernet Switch |
| Quantity of Network Ports | 6 |
| Quantity of Expansion Slots | 5 |
| Quantity of Fixed Ports/Expansion Slots | 6 |
| Quantity of SFP Slots | 2 |
| Console Management Port | Yes |
| Uplink Port | Yes |
| USB Port | No |
| Stacking Port | No |
| POE/POE+ Supports | PoE+ |
| PoE Budget | 120 Watts |
| Media Standard | Optical Fiber |
| Technology Standard | 10/100/1000Base-TX |
| Ethernet Standard | Gigabit Ethernet |
| Supported Layer Standard | Layer 2 |
| Manageable | Yes |
| MAC Address Table Capacity | 8000 MAC Addresses |
| Jumbo Frames | 9018 Bytes |
| Supported Rack | 1U |
| Form Factor | Rail-mountable |
| Compliance Standards | RoHS,WEEE |
| Source of Power | DC Power Supply |
