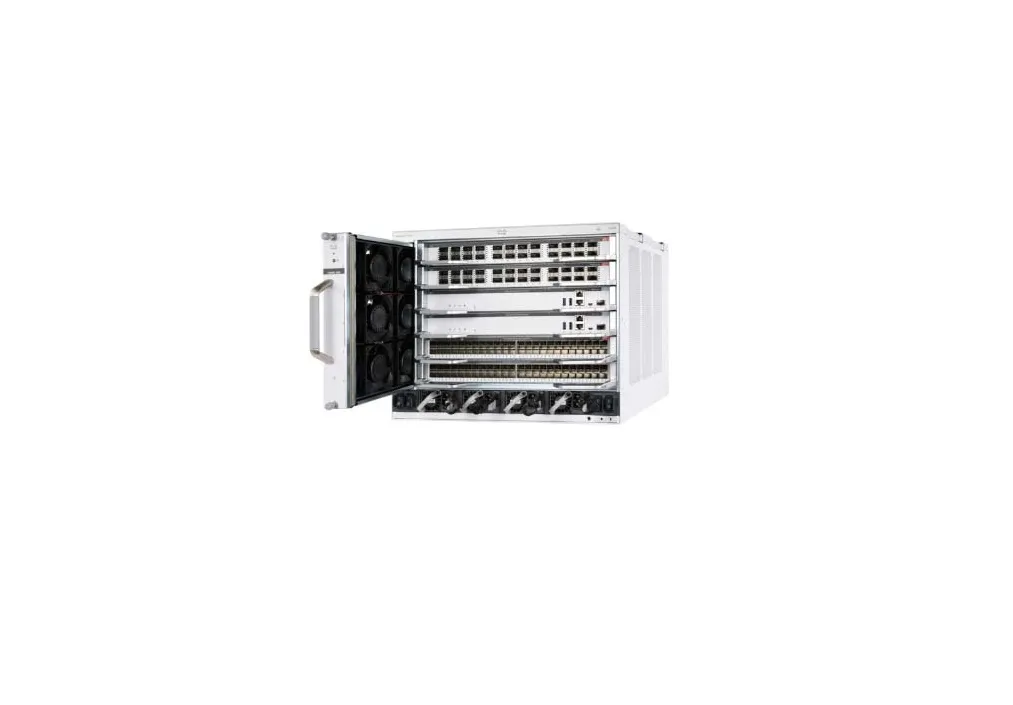

Cisco C9606R Catalyst 9600 6-Slot 1U Rack-Mountable Chassis
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Switches
Cisco C9606R Catalyst 9600 6-Slot 1U Rack-Mountable Chassis
- Part number
- C9606R
- Six-slot modular chassis
- 25.6Tbps chassis capacity
- 6.4Tbps per-slot bandwidth
- Dual supervisor architecture
- Four power-supply bays
- Nine-fan redundant fan tray
CONDITION
Ideal for
Enterprise core, campus distribution, high-availability modular switching
Cisco Catalyst 9600 Series C9606R 6-Slot Modular Chassis Supervisor Line Card Fan Power Supply System 4RU Rack-Mountable Chassis
Overview
Cisco Catalyst 9600 C9606R six-slot modular chassis for high-availability enterprise campus core and distribution deployments.
Application & Use Cases
- Enterprise campus core
- High-density distribution
- Supervisor-redundant switching
- 400G-ready campus architectures
Features
- 6-slot chassis
- 4 line-card slots
- 2 supervisor slots
- 1+1 supervisor redundancy
- Up to 6.4Tbps per slot
- Four power-supply bays
- 9-fan redundant fan tray
Key Specifications
- Chassis Slots: 6
- Line Card Slots: 4
- Supervisor Slots: 2
- Supervisor Redundancy: 1+1
- Maximum Switching Capacity: 25.6Tbps
- Per-Slot Bandwidth: 6.4Tbps
- Supervisor: C9600X-SUP-2 or C9600-SUP-1
- Power Bays: 4
- Minimum PSUs: 2
- PSU Options: 3000W AC, 2000W AC/DC
- Fan Tray: 9 redundant fans
- Rack Height: 8RU
- Dimensions: 13.95 × 17.4 × 16.1 in
- Input Voltage: 90–264VAC / -40 to -72VDC
- Operating Temperature: -5°C to 45°C
- Humidity: 10–95% non-condensing
- Altitude: Up to 3000m
- MTBF: 4,113,900 hours
- Airflow: Side-to-side
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9600 |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 6 |
| Stacking Port | No |
| Quantity of Expansion Slots | 6 |
| Ethernet Standard | Gigabit Ethernet |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| Jumbo Frames | 9216 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 8U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | Power Supply |
