Cisco C9500-40X-A-RF Catalyst 9500 Series 9500-40X 40-Ports Switch
Refurbished

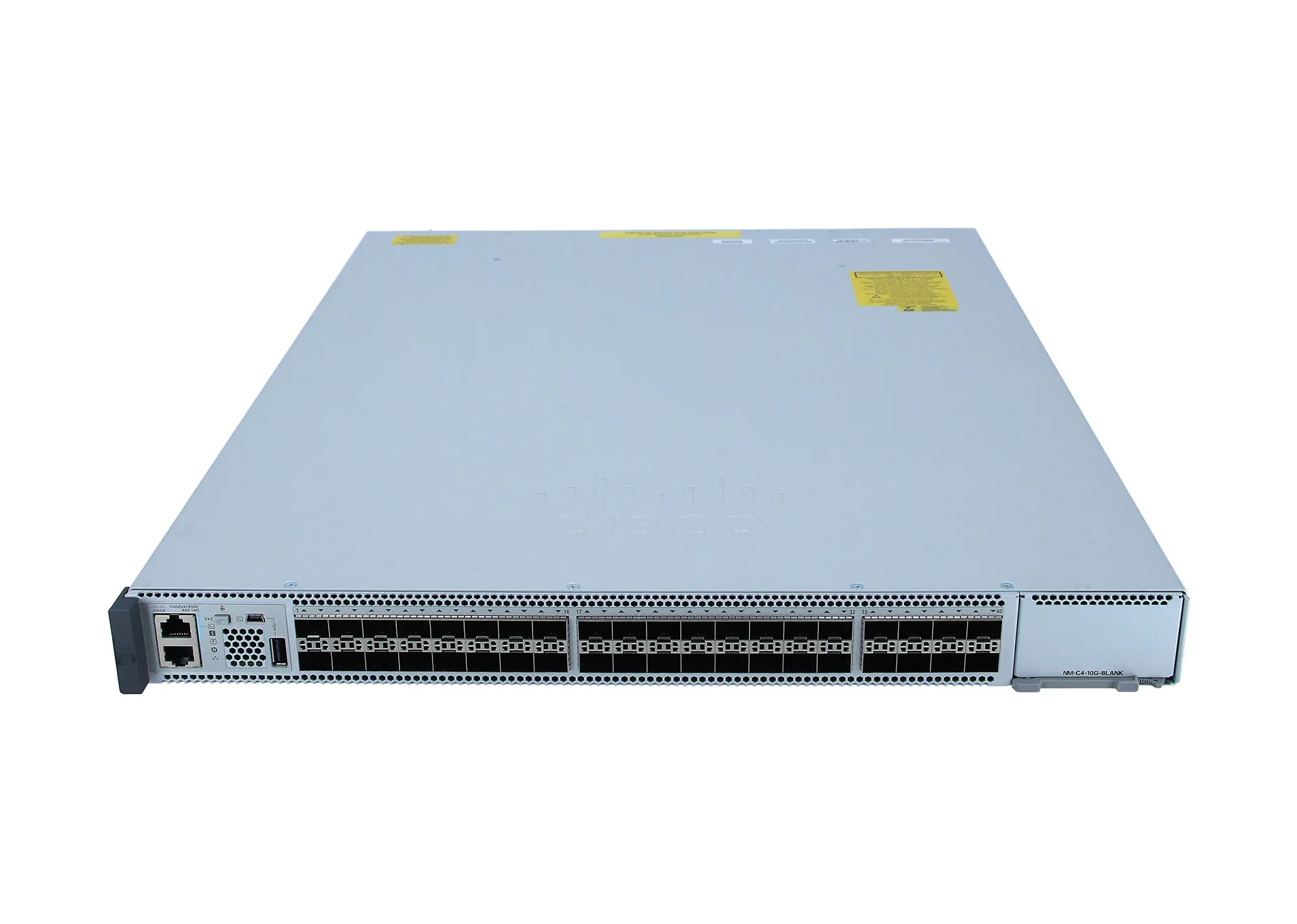

![C9500-40X-A-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9500 Switches
Cisco C9500-40X-A-RF Catalyst 9500 Series 9500-40X 40-Ports Switch
- Part number
- C9500-40X-A-RF
- 40-port 10G SFP/SFP+ density
- 360-Mpps forwarding architecture
- 64K MAC scale
- 64K IPv4 indirect routes
- 512K FNF entries
- StackWise Virtual support
CONDITION
Ideal for
Campus Core, Distribution, 10G Aggregation
Cisco C9500-40X-A-RF Catalyst 9500 C9500-40X 40x Ports SFP+ 2x Ports QSFP Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9500 40-port 10G core/aggregation switch with Network Advantage licensing. RF designation follows the Cisco C9500-40X-A hardware configuration.
Application & Use Cases
- Campus core and distribution
- 10G aggregation
- Data-center aggregation
- High-density SFP+ connectivity
- StackWise Virtual systems
Features
- 40 x 10G Ethernet ports
- Network Advantage
- UADP architecture
- StackWise Virtual
- MACsec
- IOS XE
Key Specifications
- Ports: 40 x 10G
- Interface: SFP/SFP+
- License: Network Advantage
- Switching Capacity: up to 480 Gbps
- Forwarding: up to 360 Mpps
- MAC Addresses: up to 64K
- IPv4 Indirect Routes: up to 64K
- IPv4 Host Routes: up to 80K
- IPv6 Indirect Routes: up to 32K
- IPv6 Host Routes: up to 40K
- IPv4 Multicast: up to 32K
- IPv6 Multicast: up to 16K
- QoS ACL: up to 18K/9K
- Security ACL: up to 18K/9K
- FNF Entries: up to 512K
- DRAM: 16GB
- Flash: 16GB
- VLAN IDs: 4094
- Jumbo Frames: 9198 bytes
- OS: Cisco IOS XE
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9500 |
| Model | C9500-40X-2Q |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 40 |
| Quantity of Network Ports | 40 |
| Uplink Port | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 42 |
| Expansion Slots Details | SFP+,QSFP |
| Quantity of SFP+ Slots | 40 |
| Ethernet Standard | 10 Gigabit Ethernet,40 Gigabit Ethernet |
| Media Standard | Optical Fiber |
| Technology Standard | 10GBase-X,40GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 64000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 650 Watts |
| Installed PSU | 1 |
