Cisco C9407R-96U-BNDL-A Catalyst 9407R 7-Exp Slots Switch Chassis
Refurbished

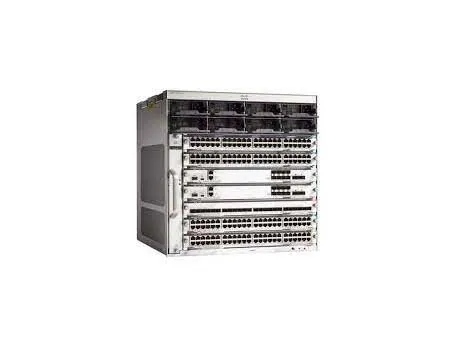

Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9400 Switches
Cisco C9407R-96U-BNDL-A Catalyst 9407R 7-Exp Slots Switch Chassis
- Part number
- C9407R-96U-BNDL-A
- Seven-slot modular chassis architecture
- Dual 48-port UPOE line cards
- Up to 480Gbps per line-card slot
- Dual supervisor slot architecture
- Eight power-supply bays
- Network Advantage feature set
CONDITION
Ideal for
Campus core, modular distribution, high-density UPOE, enterprise aggregation
Cisco C9407R-96U-BNDL-A Catalyst 9400 Series 9407R-96U 7x Expansion Slots 10U Rack-Mountable Layer 2 Managed Switch Chassis
Overview
Cisco Catalyst 9407R 7-slot chassis bundle configured with two C9400-LC-48U line cards, C9400-SUP-1XL, Network Advantage and associated Catalyst 9400 bundle components.
Application & Use Cases
- Modular campus distribution
- Enterprise core switching
- High-density PoE/UPOE access aggregation
- Redundant supervisor deployments
Features
- 7-slot C9407R chassis
- 2 × C9400-LC-48U line cards in bundle
- C9400-SUP-1XL
- Network Advantage
- Redundant supervisor architecture
- Multiple power-supply bays
Key Specifications
- Chassis: C9407R
- Total Slots: 7
- Line-Card Slots: 5
- Supervisor Slots: 2
- Supervisor: C9400-SUP-1XL
- Bundled Line Cards: 2 × C9400-LC-48U
- Line Card Ports: 48 each
- Port Speed: 10/100/1000Mbps
- PoE: UPOE-capable line card
- Maximum PoE per Slot: 4320W
- Bandwidth per Line-Card Slot: Up to 480Gbps
- Power Bays: 8
- Supervisor Redundancy: Yes
- Chassis Size: 10RU
- Dimensions: 17.41 × 17.30 × 16.30in
- Weight: 63lb with fan tray
- Mounting: 19-inch rack
- Power: AC/DC supply options
- Operating System: Cisco IOS XE
- License: Network Advantage
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9400 |
| Model | C9407R-96U-BNDL-A |
| Product Type | Switch Chassis |
| Quantity of Network Ports | 96 |
| Quantity of Expansion Slots | 7 |
| Quantity of Fixed Ports/Expansion Slots | 96 |
| Expansion Slots Details | Line Card,Supervisor Engine |
| Modular Expansion | Yes |
| Console Management Port | Yes |
| USB Port | Yes |
| Stacking Port | No |
| POE/POE+ Supports | UPoE |
| Media Standard | Optical Fiber |
| Technology Standard | 10/100/1000Base-T |
| Ethernet Standard | Gigabit Ethernet |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| Jumbo Frames | 9216 Bytes |
| Supported Rack | 10U |
| Form Factor | Rack-mountable |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | AC Power Supply |
