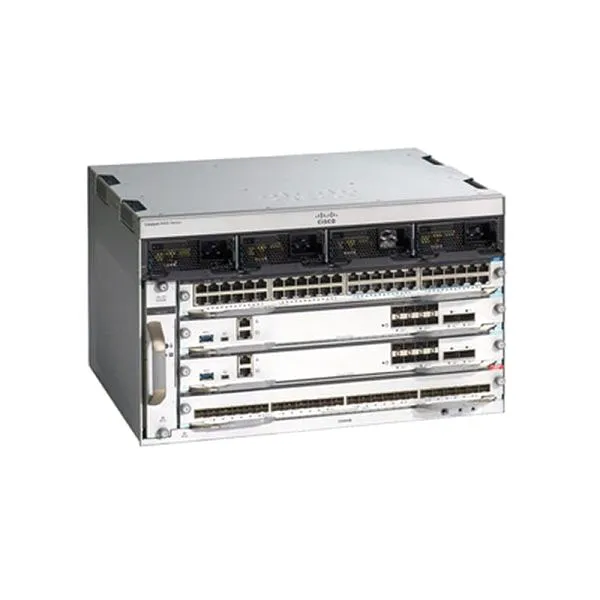

Cisco C9404R Catalyst 9400 Series 4x Expansion Slots Switch Chassis
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9400 Switches
Cisco C9404R Catalyst 9400 Series 4x Expansion Slots Switch Chassis
- Part number
- C9404R
Benefits
- Four-slot modular chassis supports Catalyst 9400 line cards
- Modular architecture enables flexible port expansion
- Supports redundant supervisor and power configurations
- High-density chassis design suits campus aggregation
- Supports PoE and UPOE line-card deployments
- Modular design enables long-term network expansion
CONDITION
Ideal for
Campus Core, Campus Distribution, Enterprise Aggregation, Modular Access, High-Availability Networks
Cisco C9404R Catalyst 9400 Series 4-Slot Modular Chassis Switch 2 Supervisor Slots 2 Line Card Slots Up to 96 Ports Layer 3 Enterprise Campus Network Switch
Overview
Cisco Catalyst 9400 C9404R modular campus chassis with four total slots, two line-card slots, two supervisor slots and support for high-density enterprise access deployments.
Application & Use Cases
- Enterprise campus core/access
- High-density campus switching
- Modular access-layer networks
- Redundant supervisor deployments
- Large-scale enterprise networks
Features
- 4 total chassis slots
- 2 line-card slots
- 2 supervisor engine slots
- Supervisor redundancy support
- Up to 4320W PoE per slot
- Up to 480Gbps per line-card slot
Benefits
- Supports modular campus expansion
- Provides redundant supervisor capacity
- Supports high-density line cards
- Enables flexible port configurations
- Supports enterprise campus growth
- Provides 19-inch rack installation
Key Specifications
- Series: Catalyst 9400
- Total Slots: 4
- Line-Card Slots: 2
- Supervisor Slots: 2
- Supervisor Redundancy: Supported
- Max PoE: 4320W per slot
- Bandwidth: Up to 480Gbps per line-card slot
- Power Bays: 4
- Form Factor: 6RU
- Mounting: 19-inch rack
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9400 |
| Model | C9404R |
| Product Type | Switch Chassis |
| POE/POE+ Supports | Non-PoE |
| USB Port | No |
| Console Management Port | No |
| Quantity of Fixed Ports/Expansion Slots | 4 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | No |
| Quantity of Expansion Slots | 4 |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Optical Fiber |
| Manageable | No |
| Jumbo Frames | 9216 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 6U |
| Airflow Direction | Side-to-Side Airflow |
| Source of Power | Power Supply |
| Redundant Source of Power | Yes |
