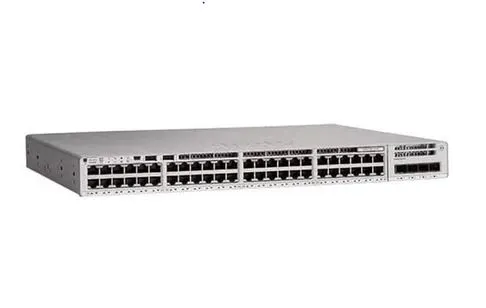

Cisco C9300X-48HX-E 48-Port 10G mGig UPOE+ Essentials Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300X-48HX-E 48-Port 10G mGig UPOE+ Essentials Switch
- Part number
- C9300X-48HX-E
- 48 multigigabit ports support endpoint rates through 10Gbps
- UPOE+ delivers high-power Ethernet to compatible devices
- 590W budget supports multiple powered endpoint loads
- StackWise-1T enables high-bandwidth physical stacking
- Modular uplinks provide flexible aggregation connectivity
- Network Essentials defines the documented software tier
CONDITION
Ideal for
Wi-Fi 6E; UPOE+; IoT; digital buildings; campus access; 10G endpoints; smart infrastructure; enterprise edge
Cisco C9300X-48HX-E Catalyst 9300X Series switch with 48 10G multigigabit copper ports UPOE+ modular uplinks and Network Essentials for enterprise networks Managed Switch
Overview
Cisco Catalyst 9300X 48-port 10G multigigabit UPOE+ switch with Network Essentials and modular uplinks.Application & Use Cases
- UPOE+ campus access
- High-density wireless infrastructure
- Digital building edge
- IoT endpoint power
- 10G access networks
- Enterprise campus switching
Features
- 48× 10G multigigabit ports
- UPOE+ support
- Up to 90W-class endpoint power
- 590W budget with 1100W AC PSU
- StackWise-1T
- Network Essentials
Key Specifications
- Ports: 48
- Rates: 100M/1/2.5/5/10G
- PoE: UPOE+
- PoE Budget: 590W with 1100W AC PSU
- Uplinks: Modular
- Stacking: StackWise-1T
- License: Network Essentials
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | C9300X-48HX |
| Product Type | Layer 3 Switch |
| Quantity of Network Ports | 48 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | 3 |
| Manageable | Yes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS |
| Source of Power | Power Supply,UPoE |
| Redundant Source of Power | Yes |
