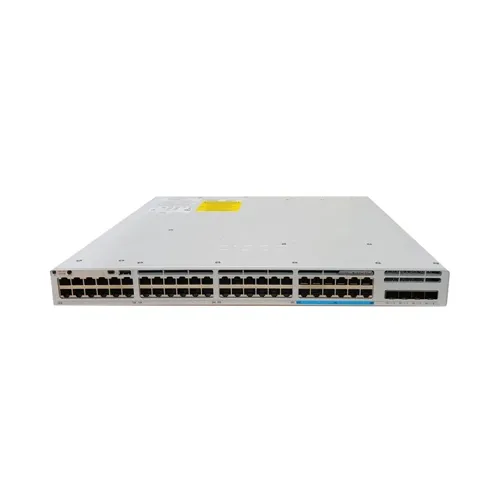

Cisco C9300L-48UXG4X-10E C9300L-48Uxg-4X 36x Port Managed Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-48UXG4X-10E C9300L-48Uxg-4X 36x Port Managed Switch
- Part number
- C9300L-48UXG4X-10E
- 12 multigig ports support high-speed AP uplinks
- UPOE supplies power to advanced edge devices
- Four 10G SFP+ ports provide fiber aggregation
- 712Gbps switching supports high traffic loads
- StackWise-320 supports resilient access stacks
- 529.76Mpps forwarding supports dense packet traffic
CONDITION
Ideal for
Wi-Fi 6E, Campus Access, UPOE, IoT, AP Uplinks, Enterprise Edge
Cisco C9300L-48UXG4X-10E Catalyst 9300L Series C9300L-48UXG-4X 36x Ports UPoE 1000Base-T 12x Ports UPoE MGbE 4x SFP+ Uplinks Ports L3 Managed 1U GE Network Switch
Overview
Cisco Catalyst C9300L-48UXG4X-10E is a 48-port fixed-uplink multigigabit access switch combining 36 Gigabit ports with 12 multigigabit UPOE ports and four fixed 10G SFP+ uplinks. It supports StackWise-320, UADP 2.0 and Network Essentials licensing.
Application & Use Cases
- Wi-Fi 6/6E access switching
- High-speed wireless AP connectivity
- Campus access networks
- UPOE edge devices
- IoT and building systems
- 10G access uplinks
Features
- 36 × 1G copper ports
- 12 × multigig UPOE ports
- 100M/1G/2.5G/5G/10G multigig
- 4 × 10G SFP+ fixed uplinks
- StackWise-320
- UADP 2.0 ASIC
- Network Essentials
Key Specifications
- Total Access Ports: 48
- Gigabit Ports: 36
- Multigig Ports: 12
- Multigig Speeds: 100M/1G/2.5G/5G/10G
- PoE: UPOE
- Uplinks: 4 × 10G SFP+
- Switching Capacity: 712Gbps
- Forwarding Rate: 529.76Mpps
- Stacking: StackWise-320
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | C9300L-48UXG-4X |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | UPoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 675 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
