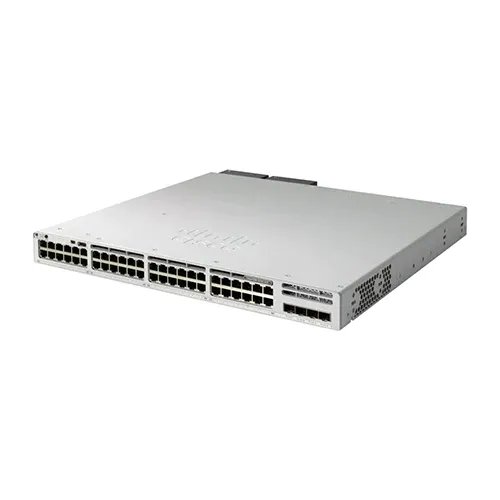

Cisco C9300L-48PF-4X-E 48x RJ-45 PoE+ 4x SFP+ Ethernet Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-48PF-4X-E 48x RJ-45 PoE+ 4x SFP+ Ethernet Switch
- Part number
- C9300L-48PF-4X-E
- 48-port full PoE+ switching
- 890W PoE budget
- Four fixed 10G uplinks
- 320-Gbps StackWise bandwidth
- 369-Mpps stacked forwarding
- 32K MAC address capacity
CONDITION
Ideal for
High-Density PoE, 10G Access, Wireless, IP Phones
Cisco C9300L-48PF-4X-E Catalyst Series 9300L 48x Ports 10/100/1000Base-T Gigabit Ethernet RJ-45 PoE+ 4x Ports 10 Gbase-X 10 Gigabit Ethernet SFP+ 1U Reck-mountable Ethernet Network Switch
Overview
Cisco Catalyst 9300L full-PoE 48-port switch with 4 x fixed 10G SFP+ uplinks, Network Essentials licensing and 890W PoE budget with 1100W AC power.
Application & Use Cases
- High-density PoE access
- 10G access uplinks
- Wireless infrastructure
- IP telephony
- IoT endpoint networks
Features
- 48 x 10/100/1000 PoE+
- 4 x fixed 10G SFP+ uplinks
- 890W PoE budget
- StackWise-320
- Network Essentials
- IOS XE
Key Specifications
- Downlinks: 48 x 10/100/1000
- PoE: PoE+
- PoE Budget: 890W
- Uplinks: 4 x 10G SFP+
- Power: 1100W AC
- License: Network Essentials
- Stacking: StackWise-320
- Stack Bandwidth: 320 Gbps
- Stack Members: 8
- Switching: 176 Gbps
- Stacked Switching: 496 Gbps
- Forwarding: 130.95 Mpps
- Stacked Forwarding: 369.05 Mpps
- MAC Table: 32K
- VLAN IDs: 4094
- IPv4 Routes: 32K
- IPv6 Routes: 16K
- Jumbo: 9198 bytes
- OS: IOS XE
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9400 |
| Product Type | Ethernet Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 48 |
| Quantity of Network Ports | 52 |
| Stacking Port | Yes |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 890 Watts |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
