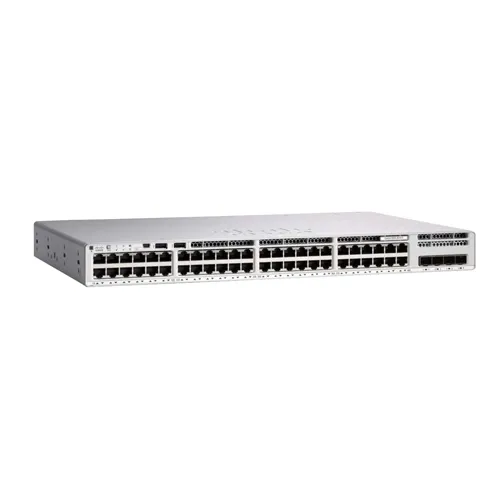

Cisco C9300L-48PF-4X-10E 48-Port PoE+ 4x 10G SFP+ Network Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-48PF-4X-10E 48-Port PoE+ 4x 10G SFP+ Network Switch
- Part number
- C9300L-48PF-4X-10E
- 48 full PoE+ ports support powered endpoints
- Four 10G SFP+ uplinks provide high-speed aggregation
- 496Gbps switching supports dense access traffic
- StackWise-320 supports resilient switch stacking
- UADP 2.0 provides programmable forwarding
- 30W PoE+ supports common enterprise endpoints
CONDITION
Ideal for
Campus Access, 10G Uplinks, IP Phones, Wi-Fi, CCTV
Cisco C9300L-48PF-4X-10E Catalyst 9300L 48x Gigabit PoE+ RJ-45 Ports 4x 10G SFP+ Fixed Uplink Ports Layer 3 Managed Stackable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst C9300L-48PF-4X-10E is a 48-port full-PoE+ 1G access switch with four fixed 10G SFP+ uplinks and a Network Essentials one-year licensing configuration. It uses StackWise-320 and supports dense 30W PoE+ enterprise access connectivity.
Application & Use Cases
- Campus access networks
- 10G fiber uplink deployments
- IP phone networks
- Wireless AP connectivity
- PoE cameras
- IoT edge switching
Features
- 48 × 1G PoE+ access ports
- Full PoE+ configuration
- 4 × 10G SFP+ uplinks
- StackWise-320
- UADP 2.0 architecture
- Network Essentials 10E configuration
Key Specifications
- Access Ports: 48 × 10/100/1000 PoE+
- PoE: Up to 30W/port
- Uplinks: 4 × 10G SFP+
- Switching Capacity: 496Gbps
- Forwarding Rate: 369.05Mpps
- Stacking: StackWise-320
- ASIC: UADP 2.0
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Model | 9300L-48P-4X |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 890 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
