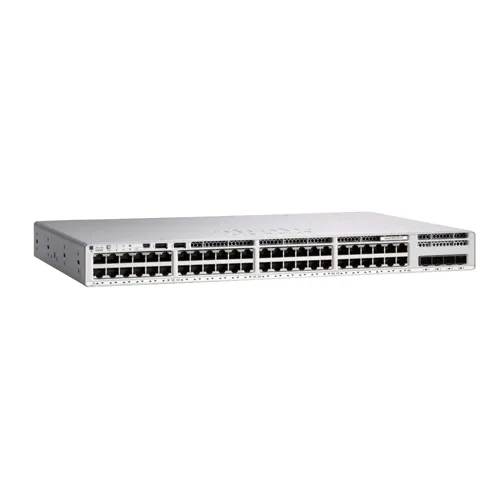

Cisco C9300L-48PF-4G-10E 9300L-48Pf-4G 48x Rj-45 Port Managed Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-48PF-4G-10E 9300L-48Pf-4G 48x Rj-45 Port Managed Switch
- Part number
- C9300L-48PF-4G-10E
- 48 full PoE+ ports support dense powered endpoints
- Four 1G SFP ports provide fiber uplinks
- 424Gbps switching capacity supports access traffic
- StackWise-320 enables switch-stack connectivity
- UADP 2.0 supports programmable packet processing
- 30W-per-port PoE+ supports common edge devices
CONDITION
Ideal for
Campus Access, IP Phones, Wi-Fi, CCTV, IoT, Enterprise Edge
Cisco C9300L-48PF-4G-10E Catalyst 9300L Series 9300L-48PF-4G 48x RJ-45 Ports PoE+ 10/100/1000Base-T 4x SFP Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst C9300L-48PF-4G-10E is a 48-port full-PoE+ 1G access switch with four fixed 1G SFP uplinks and a Network Essentials one-year licensing configuration. It uses StackWise-320 and provides full 30W PoE+ capability for dense enterprise endpoint deployments.
Application & Use Cases
- Campus access switching
- IP phone networks
- Wireless AP deployments
- PoE cameras
- IoT endpoints
- Enterprise edge access
Features
- 48 × 10/100/1000 PoE+ ports
- Full PoE+ support
- 4 × 1G SFP fixed uplinks
- StackWise-320
- UADP 2.0 architecture
- Network Essentials 10E configuration
Key Specifications
- Access Ports: 48 × 1G PoE+
- PoE: Up to 30W/port
- Uplinks: 4 × 1G SFP
- Switching Capacity: 424Gbps
- Forwarding Rate: 315.48Mpps
- Stacking: StackWise-320
- ASIC: UADP 2.0
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300L-48PF-4G |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 4 |
| PoE Budget | 890 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,1000Base-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
