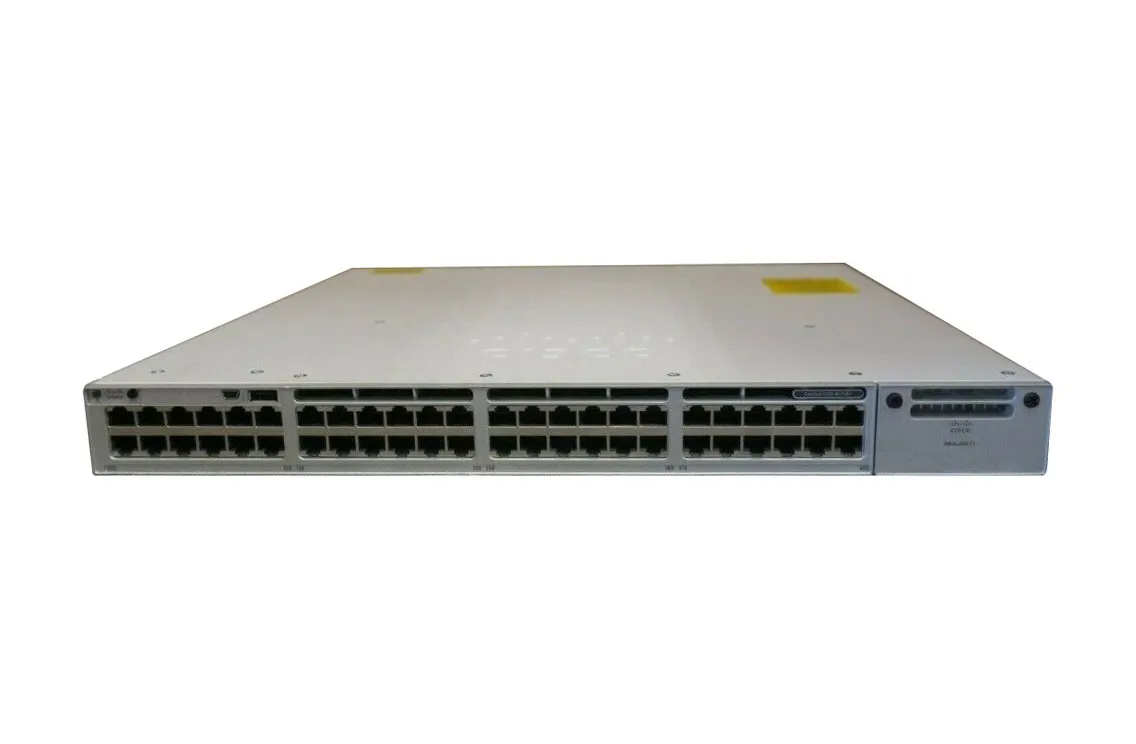

Cisco C9300L-48P-4X-E-RF Catalyst 9300L Series 48-P PoE+ GE Switch
Refurbished
![C9300L-48P-4X-E-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-48P-4X-E-RF Catalyst 9300L Series 48-P PoE+ GE Switch
- Part number
- C9300L-48P-4X-E-RF
- 48-port IEEE 802.3at PoE+
- 505W PoE availability
- Four fixed 10G uplinks
- 320-Gbps StackWise bandwidth
- 32K MAC address scale
- 369-Mpps stacked forwarding
CONDITION
Ideal for
High-Density PoE, Wireless, IP Phones, 10G Access
Cisco C9300L-48P-4X-E-RF Catalyst 9300L Series 9300L-48P-4X 48x RJ-45 Ports PoE+ 10/100/1000Base-T 4x SFP+ Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9300L 48-port PoE+ switch with 4 x fixed 1/10G SFP+ uplinks and Network Essentials licensing.
Application & Use Cases
- High-density PoE access
- Wireless AP deployment
- IP telephony
- IoT access
- 10G access uplinks
Features
- 48 x 10/100/1000 PoE+
- 4 x fixed 1/10G SFP+
- StackWise-320
- Network Essentials
- Perpetual PoE
- IOS XE
Key Specifications
- Downlinks: 48 x 10/100/1000
- PoE: PoE+
- PoE Standard: IEEE 802.3at
- PoE Budget: 505W
- Uplinks: 4 x 1/10G SFP+
- License: Network Essentials
- Stacking: StackWise-320
- Stack Bandwidth: 320 Gbps
- Maximum Stack: 8
- Switching Capacity: 176 Gbps
- Stacked Capacity: 496 Gbps
- Forwarding: 130.95 Mpps
- Stacked Forwarding: 369.05 Mpps
- MAC Table: 32K
- VLAN IDs: 4094
- IPv4 Routes: Up to 32K
- IPv6 Routes: Up to 16K
- Jumbo Frames: 9198 bytes
- Power: 715W AC
- OS: Cisco IOS XE
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300L-48P |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 505 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 715 Watts |
| Installed PSU | 1 |
