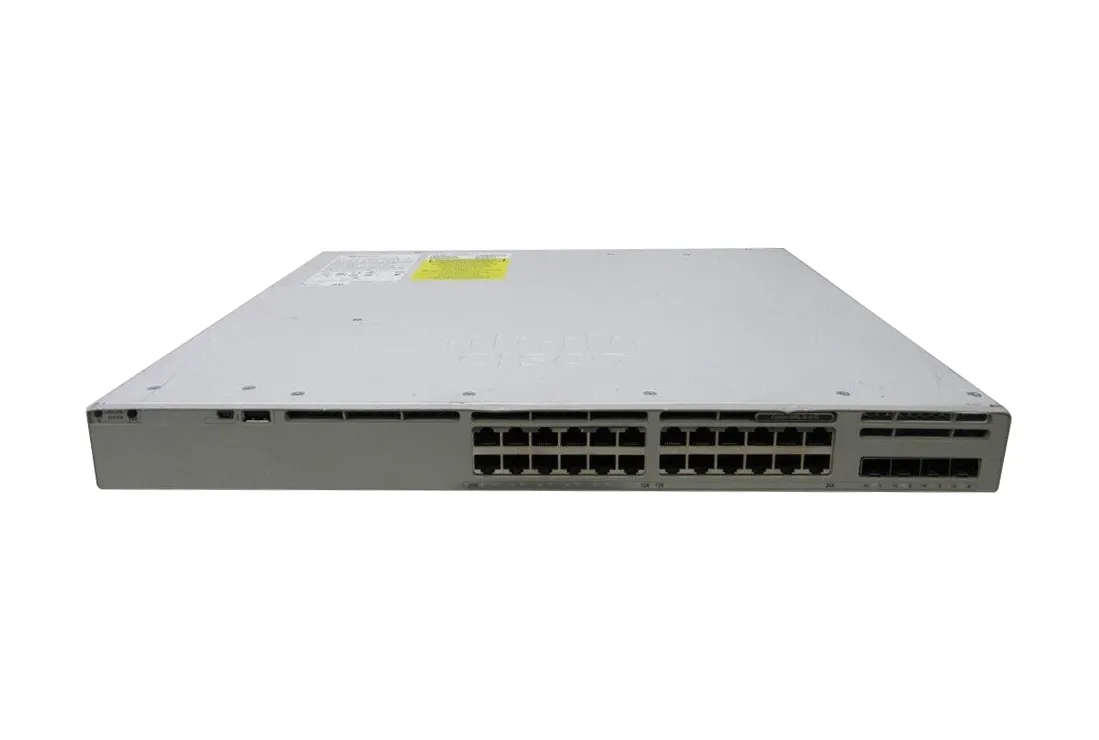

Cisco C9300L-24UXG-2Q-A Catalyst 9300L Series 24-P UPoE GE Switch
Refurbished
![C9300L-24UXG-2Q-A]()
![C9300L-24UXG-2Q-A]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300L-24UXG-2Q-A Catalyst 9300L Series 24-P UPoE GE Switch
- Part number
- C9300L-24UXG-2Q-A
- Eight mGig ports up to 10G
- Two fixed 40G uplinks
- UPOE endpoint power
- 320-Gbps stacking bandwidth
- 32K MAC table capacity
- Network Advantage routing
CONDITION
Ideal for
Multigigabit Access, Wi-Fi 6E, UPOE, 40G Uplinks
Cisco C9300L-24UXG-2Q-A Catalyst 9300 Series 9300L-24UXG-2Q 24x Ports UPoE 10/100/1000Base-T (8x Ports 10GbE RJ-45) 2x QSFP+ Ports Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9300L 24-port UPOE multigigabit switch with 8 x mGig ports up to 10G, 16 x 1G copper ports and 2 x fixed 40G QSFP uplinks. Network Advantage licensed.
Application & Use Cases
- Multigigabit campus access
- Wi-Fi 6/6E access
- UPOE endpoints
- 40G uplink deployments
- Enterprise access stacks
Features
- 8 x mGig up to 10G
- 16 x 1G copper ports
- 2 x 40G QSFP uplinks
- UPOE
- StackWise-320
- Network Advantage
Key Specifications
- Total Downlinks: 24
- mGig Ports: 8
- mGig Speed: 100M/1G/2.5G/5G/10G
- 1G Ports: 16
- Uplinks: 2 x 40G QSFP
- PoE: UPOE
- License: Network Advantage
- Stacking: StackWise-320
- Stack Bandwidth: 320 Gbps
- Maximum Stack: 8
- Switching Capacity: 128 Gbps
- Stacked Capacity: 448 Gbps
- Forwarding: 95.23 Mpps
- Stacked Forwarding: 333.33 Mpps
- MAC Table: 32K
- VLAN IDs: 4094
- IPv4 Routes: Up to 32K
- IPv6 Routes: Up to 16K
- OS: Cisco IOS XE
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300-48UN |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | UPoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 26 |
| Quantity of Network Ports | 26 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| PoE Budget | 722 Watts |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-TX |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
