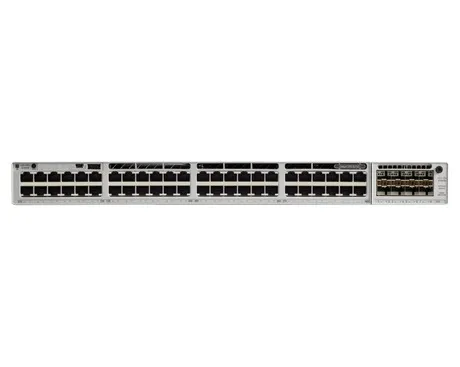

Cisco C9300-48P-A Catalyst 9300 Series 48-Ports Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300-48P-A Catalyst 9300 Series 48-Ports Switch
- Part number
- C9300-48P-A
Benefits
- 48-port Gigabit PoE+ access switching
- PoE+ powers phones, cameras and wireless APs
- Modular uplinks support scalable network designs
- StackWise-480 enables resilient switch stacking
- StackPower supports power sharing and redundancy
- Network Advantage adds advanced routing features
CONDITION
Ideal for
PoE Campus Access, IP Telephony, Wireless Access Points, IP Surveillance, IoT Networks
Cisco C9300-48P-A Catalyst 9300 Series 9300-48P 48x RJ-45 Ports PoE+ 10/100/1000Base-T Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst C9300-48P-A is a 48-port modular-uplink enterprise access switch with 48 x 10/100/1000 PoE+ ports and Network Advantage licensing. It supports modular uplinks, StackWise-480, advanced routing, MACsec, SD-Access and Cisco IOS XE automation.
Application & Use Cases
- Enterprise campus PoE access
- Wireless access point connectivity
- IP phone and collaboration networks
- PoE security and IoT deployments
- Branch and office access
- SD-Access campus edge
Features
- 48 x 10/100/1000 PoE+ ports
- Up to 822W PoE with 1100W PSU
- 437W PoE with default 715W PSU
- Modular uplinks
- StackWise-480
- Network Advantage license
- UADP 2.0 ASIC
- MACsec and SD-Access support
Benefits
- 48 PoE+ ports support dense powered access
- Up to 822W supports high PoE demand
- Network Advantage enables advanced routing
- StackWise-480 supports resilient access
- Modular uplinks support migration flexibility
- MACsec secures campus access traffic
Key Specifications
- Series: Cisco Catalyst 9300
- Ports: 48 x 10/100/1000 RJ45
- PoE: PoE+
- Default PSU: PWR-C1-715WAC-P
- Default PoE: 437W
- Optional PSU: PWR-C1-1100WAC-P
- Maximum Listed PoE: 822W
- Uplinks: Modular
- License: Network Advantage
- Switching Capacity: 256 Gbps
- Forwarding Rate: 190.47 Mpps
- Stacking: StackWise-480
- Stack Bandwidth: 480 Gbps
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300-48P |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 49 |
| Quantity of Network Ports | 48 |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 1 |
| PoE Budget | 437 Watts |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 715 Watts |
| Installed PSU | 1 |
