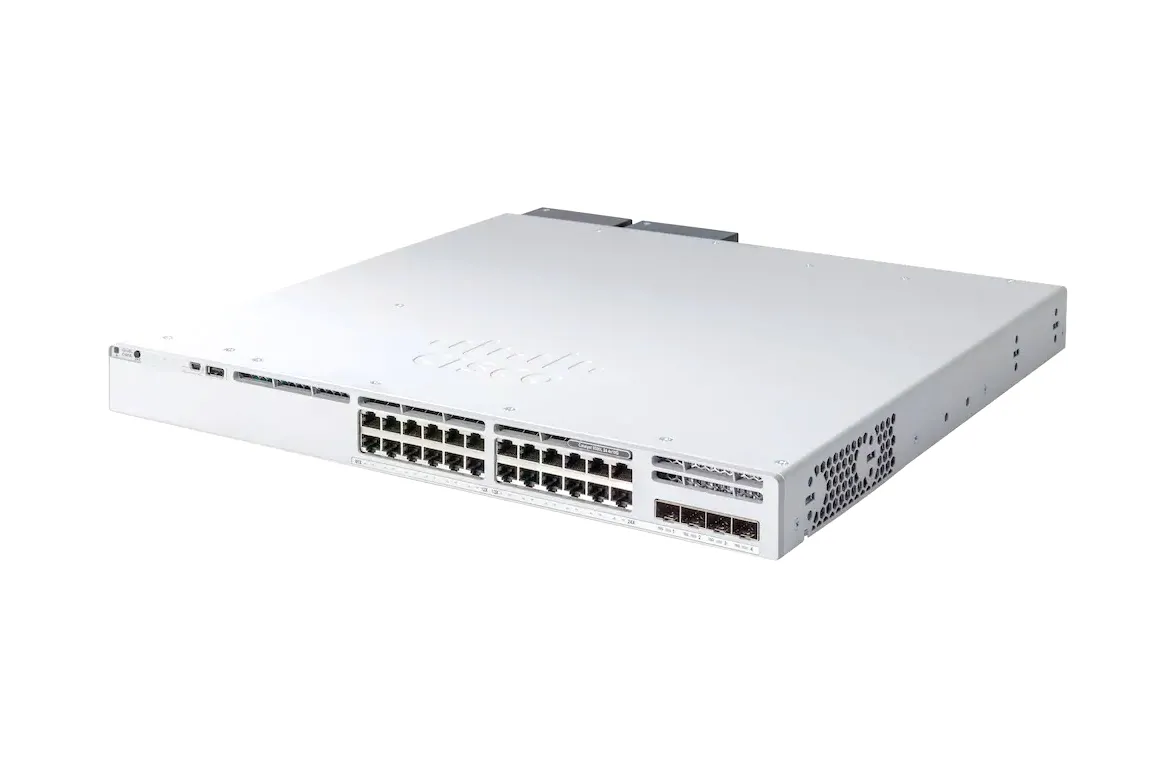

Cisco C9300-24UX-A-RF Catalyst 9300 Series 24-Ports UPoE Switch
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300-24UX-A-RF Catalyst 9300 Series 24-Ports UPoE Switch
- Part number
- C9300-24UX-A-RF
- 24 multigigabit UPOE interfaces
- 10Gbps copper port capability
- 640Gbps switching capacity
- 476.19Mpps forwarding rate
- 480Gbps StackWise bandwidth
- Network Advantage feature set
CONDITION
Ideal for
High-speed campus access, Wi-Fi 6/6E APs, UPOE endpoints
Cisco C9300-24UX-A-RF Catalyst 9300 Series 9300-24U 24x RJ-45 Ports UPoE+ 10/100/1000Base-T Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9300 24-port multigigabit UPOE switch with modular uplinks and Network Advantage software.
Application & Use Cases
- High-speed campus access
- Multigigabit Wi-Fi infrastructure
- UPOE endpoint deployment
- Enterprise access aggregation
Features
- 24 × 10G/mGig copper ports
- UPOE
- Modular uplinks
- Network Advantage
- StackWise-480
- StackPower
Key Specifications
- Ports: 24
- Port Type: Multigigabit RJ45
- Maximum Port Speed: 10Gbps
- PoE: UPOE
- Uplink: Modular
- License: Network Advantage
- Switching Capacity: 640Gbps
- Forwarding Rate: 476.19Mpps
- Stacking: StackWise-480
- Stack Bandwidth: 480Gbps
- Stack Members: Up to 8
- StackPower: Supported
- Operating System: Cisco IOS XE
- Layer 2: Supported
- Layer 3: Supported
- 802.1X: Supported
- TrustSec: Supported
- MACsec: Supported
- SD-Access: Supported
- Management: Catalyst Center/CLI/SNMP
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300-24U |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | UPoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 25 |
| Quantity of Network Ports | 24 |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 1 |
| PoE Budget | 490 Watts |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Optical Fiber |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 1100 Watts |
| Installed PSU | 1 |
