Cisco C9300-24T-A-RF Catalyst 9300 Series 24-Ports 1GbE Switch
Refurbished

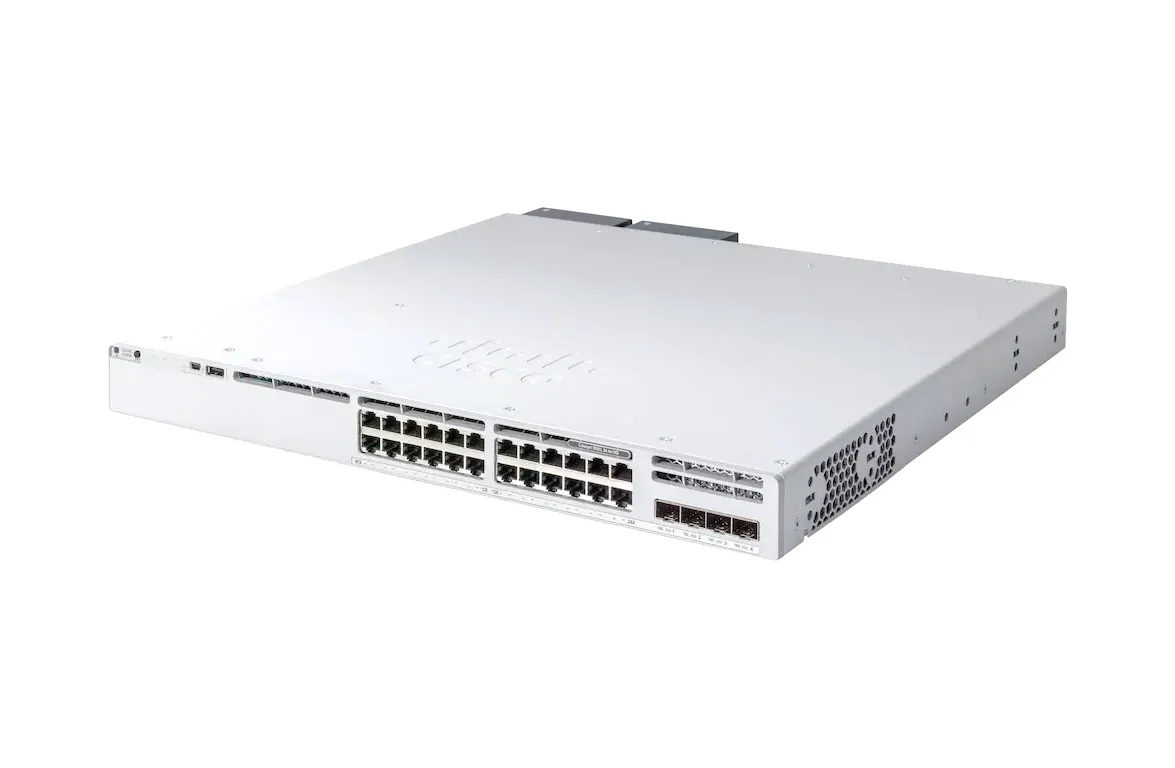

![C9300-24T-A-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300-24T-A-RF Catalyst 9300 Series 24-Ports 1GbE Switch
- Part number
- C9300-24T-A-RF
- 24 x 1G data interfaces
- 480-Gbps StackWise bandwidth
- Modular uplink flexibility
- Network Advantage L3 features
- Field-replaceable power and fans
- StackPower hardware support
CONDITION
Ideal for
Enterprise Access, Campus LAN, Branch Networks, Layer 3 Access
Cisco C9300-24T-A-RF Catalyst 9300 Series 24x Ports 10/100/1000Base-T Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9300 24-port data switch with modular uplinks and Network Advantage licensing. RF designation corresponds to the refurbished/RF ordering variant; Cisco documents the base C9300-24T-A configuration.
Application & Use Cases
- Enterprise campus access
- Branch access switching
- Modular uplink deployments
- Stacked access architectures
- Layer 3 access
Features
- 24 x 1G copper data ports
- Modular uplink architecture
- StackWise-480
- StackPower
- Network Advantage
- IOS XE
Key Specifications
- Downlinks: 24 x 10/100/1000 copper
- PoE: No
- Uplinks: Modular
- License: Network Advantage
- Stacking: StackWise-480
- Stack Bandwidth: 480 Gbps
- Maximum Stack: 8 members
- Switching Capacity: 208 Gbps
- Stacked Capacity: 688 Gbps
- Forwarding Rate: 154.76 Mpps
- Stacked Forwarding: 511.90 Mpps
- MAC Table: 32K
- VLAN IDs: 4094
- Jumbo Frames: 9198 bytes
- Power Supply: PWR-C1-350WAC-P
- Fans: Field-replaceable
- StackPower: Supported
- Operating System: Cisco IOS XE
- Management: CLI, SNMP, NETCONF, RESTCONF
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | C9300-24T |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 25 |
| Quantity of Network Ports | 24 |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 1 |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Power Rating | 350 Watts |
| Installed PSU | 1 |
