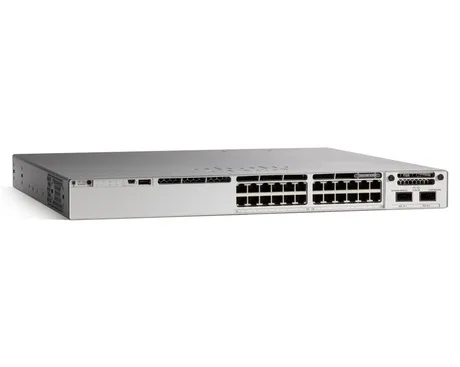

Cisco C9300-24P-E Catalyst 9300 Series 24-Ports Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9300 Switches
Cisco C9300-24P-E Catalyst 9300 Series 24-Ports Switch
- Part number
- C9300-24P-E
Benefits
- 24-port Gigabit PoE+ access switching
- PoE+ powers wireless APs, phones and cameras
- Modular uplinks support scalable network designs
- StackWise-480 enables resilient switch stacking
- StackPower supports power sharing and redundancy
- Network Essentials supports enterprise access features
CONDITION
Ideal for
PoE Campus Access, Wireless Access Points, IP Telephony, IP Cameras, IoT Networks
Cisco C9300-24P-E Catalyst 9300 Series 9300-24P 24x RJ-45 Ports PoE+ 10/100/1000Base-T Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst C9300-24P-E is a 24-port Gigabit PoE+ access switch with modular uplinks and Network Essentials licensing. It supports powered wireless access points, IP phones, cameras and IoT devices while delivering StackWise-480 scalability and Cisco IOS XE management.
Application & Use Cases
- Enterprise PoE access switching
- Wireless access point deployment
- IP phone networks
- PoE security cameras
- IoT endpoint connectivity
- Branch office access
Features
- 24 x 10/100/1000 PoE+ ports
- Up to 30W per PoE+ port
- Modular uplinks
- StackWise-480
- Network Essentials license
- UADP ASIC
- MACsec support
- SD-Access capability
Benefits
- 24 PoE+ ports power connected endpoints
- PoE simplifies wireless deployment
- Modular uplinks support network growth
- StackWise-480 supports resilient access
- MACsec secures access-layer traffic
- IOS XE supports network automation
Key Specifications
- Series: Cisco Catalyst 9300
- Form Factor: 1RU
- Ports: 24 x 10/100/1000 RJ45
- PoE: PoE+
- Default Power: 715W AC
- Uplinks: Modular
- License: Network Essentials
- Switching Capacity: 208 Gbps
- Forwarding Rate: 154.76 Mpps
- Stacking: StackWise-480
- Stacking Capacity: 688 Gbps
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9300 |
| Model | 9300-24P |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 25 |
| Quantity of Network Ports | 24 |
| Uplink Port | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 1 |
| PoE Budget | 445 Watts |
| Ethernet Standard | Gigabit Ethernet |
| Media Standard | Twisted Pair |
| Technology Standard | 10/100/1000Base-T |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 715 Watts |
| Installed PSU | 1 |
