Cisco C9200L-48T-4X-E-RF 48-Port 1G 4x 10G Essentials Switch
Refurbished

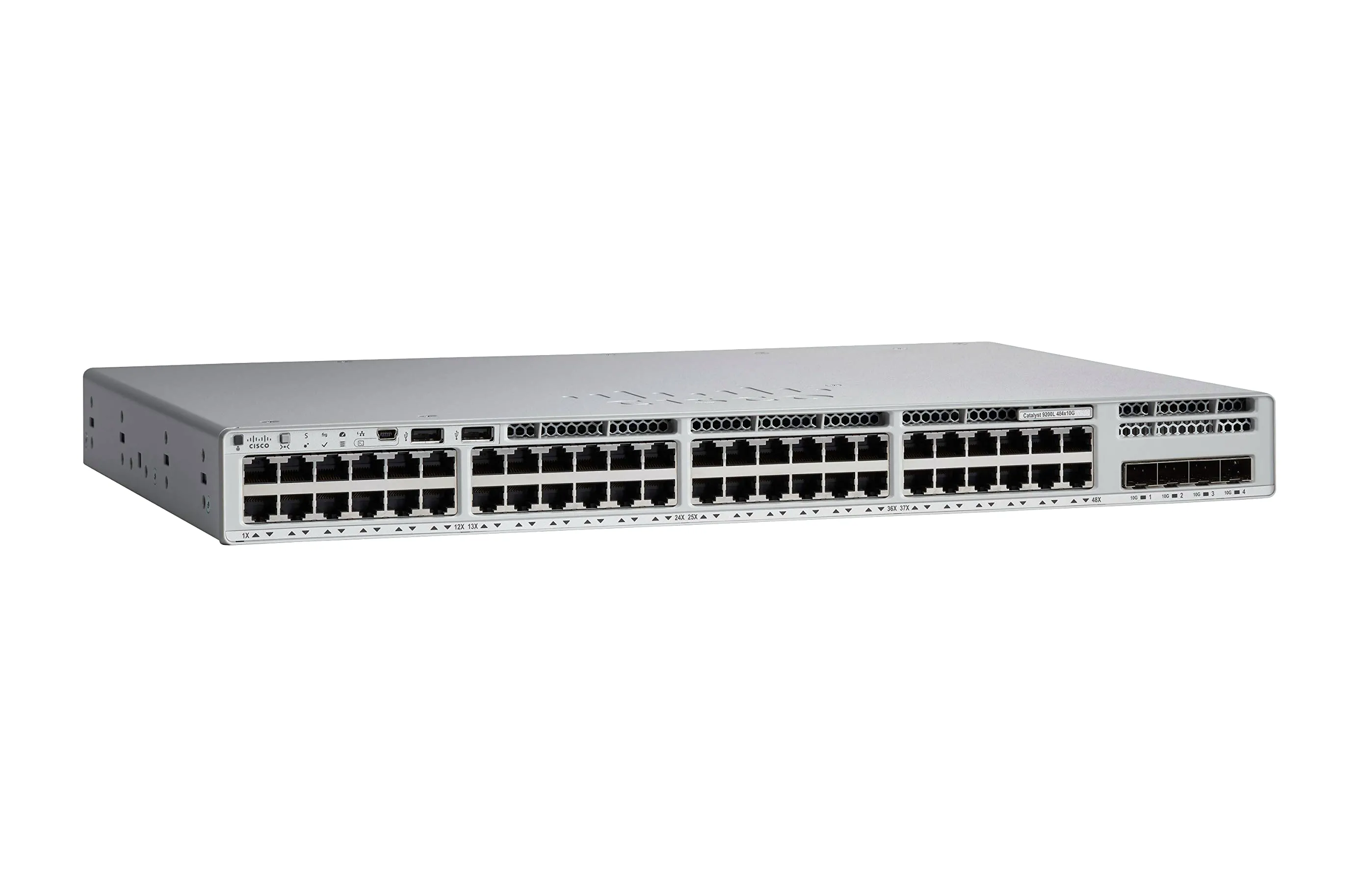

![C9200L-48T-4X-E-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9200 Switches
Cisco C9200L-48T-4X-E-RF 48-Port 1G 4x 10G Essentials Switch
- Part number
- C9200L-48T-4X-E-RF
- 48 x 1G data ports
- Four fixed 10G-capable uplinks
- 80-Gbps StackWise bandwidth
- 16K MAC address table
- 16K IPv4 route scale
- 9198-byte jumbo-frame support
CONDITION
Ideal for
High-Density Campus, Branch LAN, 10G Uplinks
Cisco C9200L-48T-4X-E-RF Catalyst 9200L Series managed switch with 48 Gigabit data ports 4 10G SFP+ fixed uplinks and Network Essentials Managed Switch
Overview
Cisco Catalyst 9200L 48-port data switch with 4 x fixed 1/10G uplinks and Network Essentials licensing.
Application & Use Cases
- High-density campus data access
- Branch Ethernet access
- 10G uplink aggregation
- Stacked access networks
- Enterprise LAN deployment
Features
- 48 x 10/100/1000 copper
- 4 x 1/10G fixed uplinks
- StackWise-80
- Network Essentials
- IOS XE
- Meraki dashboard migration capability
Key Specifications
- Downlinks: 48 x 10/100/1000
- Uplinks: 4 x 1/10G
- PoE: No
- License: Network Essentials
- Stacking: StackWise-80
- Stack Bandwidth: 80 Gbps
- Stack Members: Up to 8
- Switching Capacity: 176 Gbps
- Stacked Capacity: 256 Gbps
- Forwarding: 130.95 Mpps
- Stacked Forwarding: 190 Mpps
- MAC Table: 16K
- VLAN IDs: 4094
- IPv4 Routes: up to 16K
- IPv6 Routes: up to 8K
- Jumbo Frames: 9198 bytes
- Power: PWR-C5-125WAC
- Fans: Fixed redundant
- OS: Cisco IOS XE
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Expansion Slots Details | SFP+ |
| Quantity of SFP+ Slots | 4 |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 125 Watts |
| Installed PSU | 1 |
