Cisco C9200L-48T-4G-A-RF Catalyst 9200L Series 48-Ports GE Switch
Refurbished

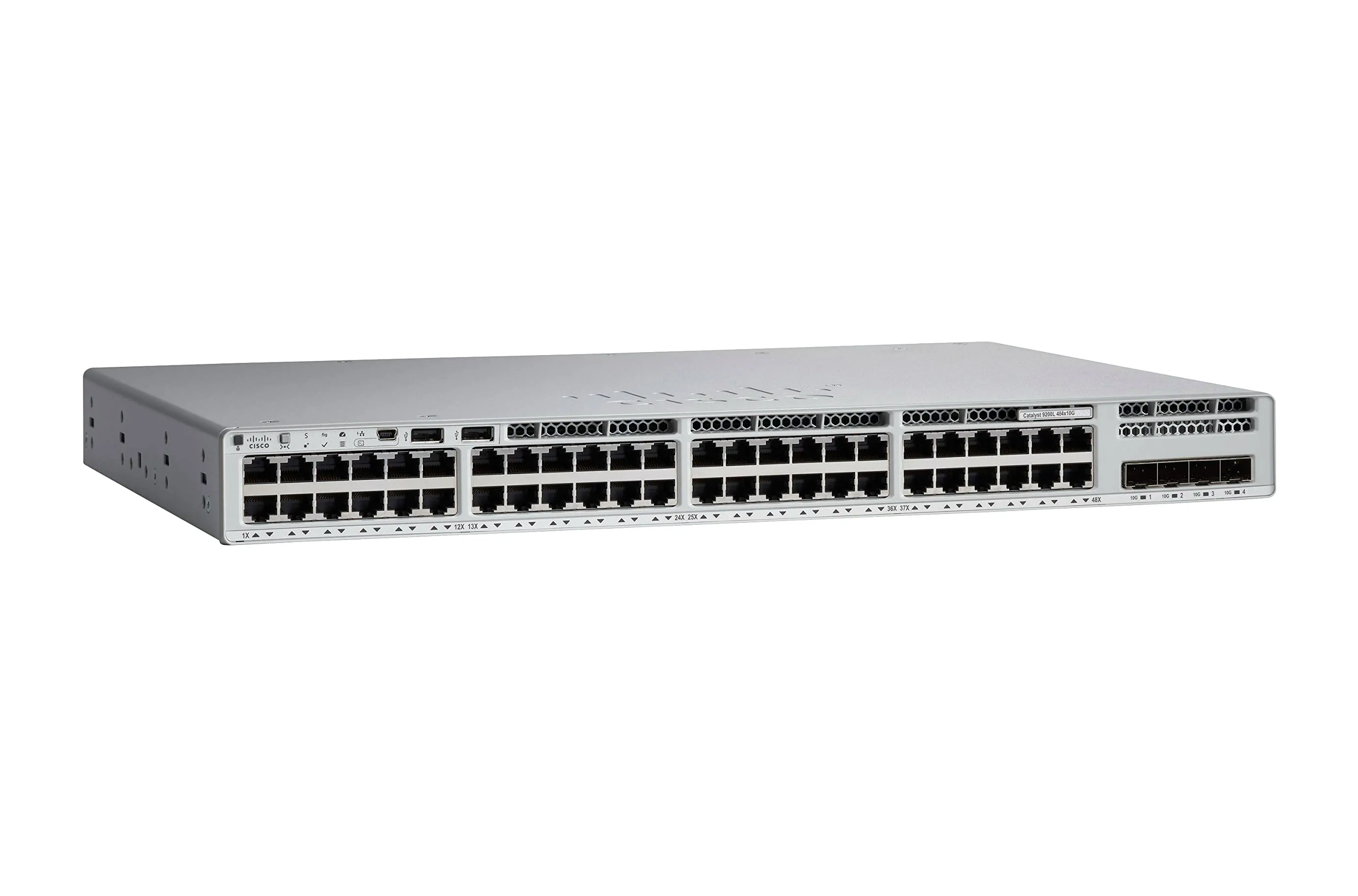

![C9200L-48T-4G-A-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9200 Switches
Cisco C9200L-48T-4G-A-RF Catalyst 9200L Series 48-Ports GE Switch
- Part number
- C9200L-48T-4G-A-RF
- 48 x 1G copper data ports
- Four fixed 1G SFP uplinks
- 80-Gbps stacking bandwidth
- 104-Gbps standalone switching
- 16K MAC address scale
- Network Advantage L3 features
CONDITION
Ideal for
Campus Access, Branch LAN, High-Density 1G
Cisco C9200L-48T-4G-A-RF Catalyst 9200L Series 9200L-48T-4G 48x RJ-45 Ports 10/100/1000Base-T 4x SFP Ports Layer 3 Managed Rack-mountble Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9200L 48-port data switch with 4 x fixed 1G uplinks and Network Advantage licensing.
Application & Use Cases
- Campus 1G access
- Branch LAN switching
- High-density data access
- 1G uplink aggregation
- Stacked access networks
Features
- 48 x 10/100/1000 data ports
- 4 x fixed 1G SFP uplinks
- StackWise-80
- Network Advantage
- Fixed redundant fans
- IOS XE
Key Specifications
- Downlinks: 48 x 10/100/1000
- Uplinks: 4 x 1G SFP
- PoE: No
- License: Network Advantage
- Stacking: StackWise-80
- Stack Bandwidth: 80 Gbps
- Stack Members: Up to 8
- Switching Capacity: 104 Gbps
- Stacked Capacity: 184 Gbps
- Forwarding: 77.38 Mpps
- Stacked Forwarding: 137 Mpps
- MAC Table: 16K
- VLAN IDs: 4094
- IPv4 Routes: up to 16K
- IPv6 Routes: up to 8K
- Jumbo Frames: 9198 bytes
- Power: PWR-C5-125WAC
- Fans: Fixed redundant
- OS: Cisco IOS XE
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 52 |
| Quantity of Network Ports | 52 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Expansion Slots Details | SFP+ |
| Quantity of SFP Slots | 4 |
| Quantity of SFP+ Slots | 4 |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 125 Watts |
| Installed PSU | 1 |
