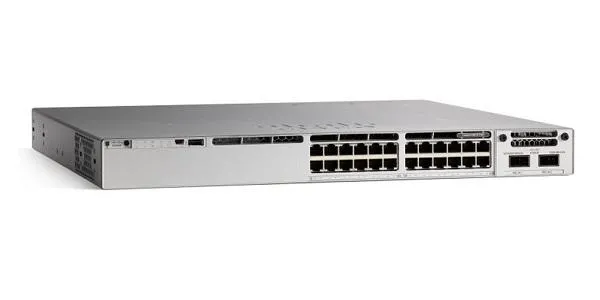

Cisco C9200L-24T-4G-E-RF 9200L Catalyst 24-Ports Managed Switch
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9200 Switches
Cisco C9200L-24T-4G-E-RF 9200L Catalyst 24-Ports Managed Switch
- Part number
- C9200L-24T-4G-E-RF
- 24 x 1G copper data ports
- Four fixed 1G SFP uplinks
- 80-Gbps stacking bandwidth
- 56-Gbps switching capacity
- 16K MAC address table
- 9198-byte jumbo support
CONDITION
Ideal for
Campus Data Access, Branch LAN, 1G Uplinks
Cisco C9200L-24T-4G-E-RF Catalyst 9200L Series 9200L-24T-4G 24x RJ-45 Ports 10/100/1000Base-T 4x SFP Uplink Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 9200L 24-port data switch with 4 x fixed 1G uplinks and Network Essentials licensing.
Application & Use Cases
- Campus data access
- Branch LAN
- 1G uplink access
- Enterprise edge switching
- Stacked access networks
Features
- 24 x 10/100/1000 data
- 4 x 1G SFP fixed uplinks
- StackWise-80
- Network Essentials
- IOS XE
- Fixed redundant fans
Key Specifications
- Downlinks: 24 x 10/100/1000
- Uplinks: 4 x 1G SFP
- PoE: No
- License: Network Essentials
- Stacking: StackWise-80
- Stack Bandwidth: 80 Gbps
- Stack Members: 8
- Switching: 56 Gbps
- Stacked Switching: 136 Gbps
- Forwarding: 41.67 Mpps
- Stacked Forwarding: 101 Mpps
- MAC Table: 16K
- VLAN IDs: 4094
- IPv4 Routes: 16K
- IPv6 Routes: 8K
- Jumbo: 9198 bytes
- Power: PWR-C5-125WAC
- Fans: Fixed redundant
- OS: IOS XE
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Model | 9200L-24T-4G |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | Non-PoE |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 28 |
| Quantity of Network Ports | 28 |
| Uplink Port | Yes |
| Modular Expansion | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP |
| Quantity of SFP Slots | 4 |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Optical Fiber,Twisted Pair |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 125 Watts |
| Installed PSU | 1 |
