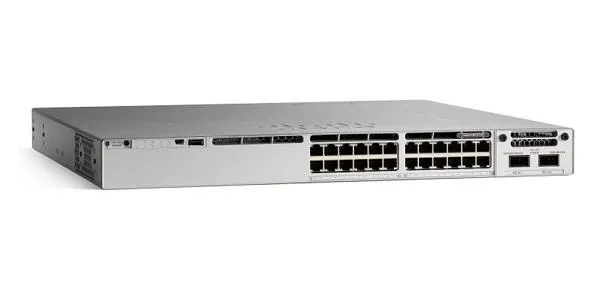

Cisco C9200L-24T-4G-A 24-Port Data 4x 1G Advantage Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9200 Switches
Cisco C9200L-24T-4G-A 24-Port Data 4x 1G Advantage Switch
- Part number
- C9200L-24T-4G-A
- 24 Gigabit data interfaces
- Four fixed 1G SFP uplinks
- 56Gbps switching capacity
- 41.67Mpps forwarding rate
- 80Gbps StackWise bandwidth
- Network Advantage licensing
CONDITION
Ideal for
Campus access, branch data, Gigabit fiber uplinks
Cisco Catalyst 9200L Series 24 x 10/100/1000 data ports 4 x 1G fixed uplinks StackWise-80 Network Advantage 2 PSU slots 2 fixed fans 104 Gbps switching capacity Managed Network Switch
Overview
Cisco Catalyst 9200L 24-port Gigabit data switch with 4 fixed 1G SFP uplinks and Network Advantage software.
Application & Use Cases
- Campus access
- Branch data switching
- Gigabit fiber uplinks
- Stacked access networks
Features
- 24 × 10/100/1000
- 4 × 1G SFP fixed uplinks
- 350W AC PSU
- StackWise-80
- Network Advantage
Key Specifications
- Ports: 24 × 10/100/1000
- PoE: No
- Uplinks: 4 × 1G SFP
- PSU: 350W AC
- Switching Capacity: 56Gbps
- Forwarding Rate: 41.67Mpps
- Stacking: StackWise-80
- Stack Bandwidth: 80Gbps
- Stack Members: 8
- License: Network Advantage
- OS: Cisco IOS XE
- Uplink Type: Fixed
- VLAN IDs: 4094
- MAC Table: 16,000
- 802.1X: Supported
- TrustSec: Supported
- MACsec: Supported
- Layer 3: Supported
- Management: CLI/SNMP/NETCONF/RESTCONF
- Form Factor: 1RU
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Model | C9200L-24T-4G |
| Product Type | Layer 3 Switch |
| Quantity of Network Ports | 28 |
| Quantity of Expansion Slots | 4 |
| Quantity of Fixed Ports/Expansion Slots | 28 |
| Quantity of SFP Slots | 4 |
| Console Management Port | Yes |
| Uplink Port | Yes |
| USB Port | Yes |
| Stacking Port | Yes |
| POE/POE+ Supports | Non-PoE |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,1000Base-X |
| Ethernet Standard | Gigabit Ethernet |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Supported Rack | 1U |
| Form Factor | Rack-mountable |
| Compliance Standards | RoHS,EU WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Redundant Source of Power | Yes |
| Source of Power | AC Power Supply |
| Power Rating | 350 Watts |
| Installed PSU | 1 |
