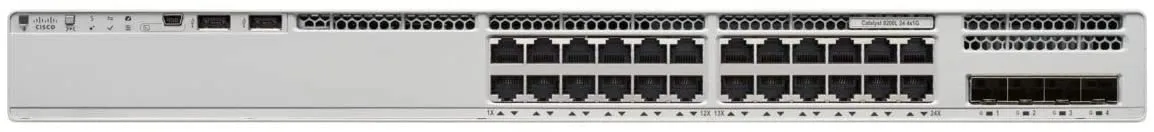

Cisco C9200L-24PXG-4X-E Catalyst 9200L Series 24-P PoE+ GE Switch
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Catalyst 9200 Switches
Cisco C9200L-24PXG-4X-E Catalyst 9200L Series 24-P PoE+ GE Switch
- Part number
- C9200L-24PXG-4X-E
- Eight multigigabit PoE+ interfaces
- Sixteen Gigabit access ports
- Four 1/10G SFP+ uplinks
- 272Gbps switching capacity
- 214.28Mpps forwarding rate
- 80Gbps StackWise bandwidth
CONDITION
Ideal for
Multigig Wi-Fi, campus access, PoE+ endpoints, 10GbE uplinks
Cisco C9200L-24PXG-4X-E Catalyst 9200L Series 9200L-24PXG-4X 16x Ports PoE+ 1000Base-T 8x Multi Gigabit PoE+ Ports 4x SFP+ PoE+ Ports L3 Managed GE Network Switch
Overview
Cisco Catalyst 9200L 24-port PoE+ switch with 8 multigigabit ports, 16 Gigabit ports, 4 fixed 1/10G SFP+ uplinks and Network Essentials.
Application & Use Cases
- Multigigabit campus access
- Wi-Fi AP deployment
- PoE+ endpoint connectivity
- 10GbE access aggregation
Features
- 8 × mGig ports
- 16 × Gigabit ports
- 4 × 1/10G SFP+ uplinks
- PoE+
- 600W-class PSU
- StackWise-80
Key Specifications
- Total Ports: 24
- mGig Ports: 8
- Gigabit Ports: 16
- mGig Speed: Up to 10Gbps
- Uplinks: 4 × 1/10G SFP+
- PoE: PoE+
- PSU: PWR-C5-600WAC
- Switching Capacity: 272Gbps
- Forwarding Rate: 214.28Mpps
- Stacking: StackWise-80
- Stack Bandwidth: 80Gbps
- Stack Members: 8
- License: Network Essentials
- OS: Cisco IOS XE
- VLAN IDs: 4094
- MAC Table: 16,000
- 802.1X: Supported
- TrustSec: Supported
- MACsec: Supported
- Management: CLI/SNMP/NETCONF/RESTCONF
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9200 |
| Model | 9200L-24PXG-4X |
| Product Type | Layer 3 Switch |
| POE/POE+ Supports | PoE+ |
| USB Port | Yes |
| Console Management Port | Yes |
| Quantity of Fixed Ports/Expansion Slots | 24 |
| Quantity of Network Ports | 28 |
| Uplink Port | Yes |
| Stacking Port | Yes |
| Quantity of Expansion Slots | 4 |
| Expansion Slots Details | SFP+ |
| Quantity of SFP+ Slots | 4 |
| PoE Budget | 370 Watts |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 10/100/1000Base-T,10GBase-X |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Form Factor | Rack-mountable |
| Supported Rack | 1U |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Source of Power | AC Power Supply |
| Redundant Source of Power | Yes |
| Power Rating | 600 Watts |
| Installed PSU | 1 |
