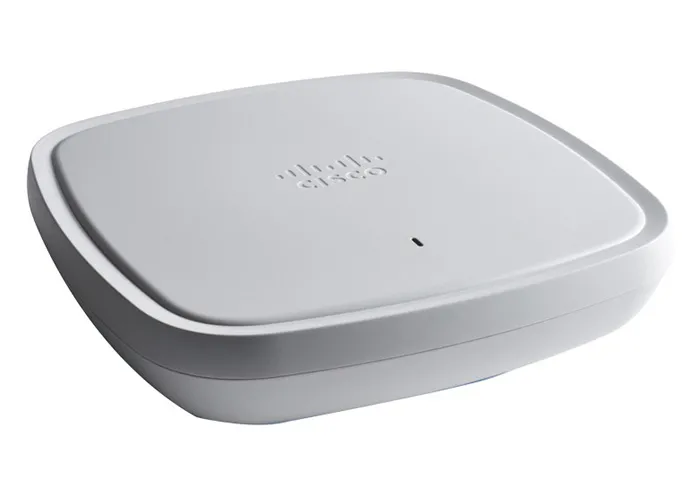

Cisco C9117AXI-EWC-B Wi-Fi 6 EWC Internal AP
New
![C9117AXI-EWC-B]()
![C9117AXI-EWC-B]()
![C9117AXI-EWC-B]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Wireless Access Points
Cisco C9117AXI-EWC-B Wi-Fi 6 EWC Internal AP
- Part number
- C9117AXI-EWC-B
- Internal antennas simplify ceiling AP deployment
- Wi-Fi 6 improves multi-client efficiency
- OFDMA allocates channel resources per client
- MU-MIMO supports concurrent transmissions
- EWC eliminates a separate controller for supported deployments
- Multigigabit supports high-speed wired uplinks
CONDITION
Ideal for
Campus Access Points, High-Density Wi-Fi 6, Embedded WLAN
Cisco Catalyst 9117AX Series Wi-Fi 6 internal-antenna AP Embedded Wireless Controller image -B regulatory domain EWC supports up to 50 APs and 1000 clients Wireless Access Point
Overview
Cisco Catalyst 9117AXI Wi-Fi 6 indoor access point with internal antennas and Embedded Wireless Controller capability, regulatory domain B.
Application & Use Cases
- High-density campus WLAN
- Enterprise indoor wireless
- Embedded controller networks
- Education and office WLANs
Features
- Wi-Fi 6 802.11ax
- Internal antenna array
- Embedded Wireless Controller
- OFDMA and MU-MIMO
- BSS coloring
- Multigigabit connectivity
Key Specifications
- Series: Catalyst 9117AX
- Wireless: 802.11ax
- Antenna: Internal
- Controller: Embedded Wireless Controller
- Radio Bands: 2.4GHz/5GHz
- OFDMA: Supported
- MU-MIMO: Supported
- BSS Coloring: Supported
- TWT: Supported
- Beamforming: Supported
- Channel Width: Up to 160MHz
- Ethernet: Multigigabit
- Security: WPA3/enterprise
- Regulatory Domain: B
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 9117AX |
| Model | 9117AXI |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Bluetooth Version | Bluetooth 5.0 |
| ISM Frequency Band | Yes |
| UNII Frequency Band | Yes |
| Interior Antenna Range | 4 dBi : 2.4 GHz - 6 dBi : 5 GHz |
| Wireless Data Rate | 5 |
| Quantity of Total Antennas | 8 |
| Quantity of Interior Antennas | 8 |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Wi-Fi Generation | Wi-Fi 6 |
| Frequency |
|
| Ethernet Standard | 5GBase-T |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 1 |
| POE/POE+ Supports | UPoE |
| VGA Port | No |
| HDMI Port | No |
| USB Port | Yes |
| Console Management Port | Yes |
| Powerline Port | No |
| PoE Power Distribution Port | No |
| Quantity of Ethernet WAN Ports (RJ-45/SFP/SFP+) | 1 |
| Form Factor | Ceiling Mount |
| Compliance Standards | FCC,WEEE |
| PoE Power Distribution Port | No |
