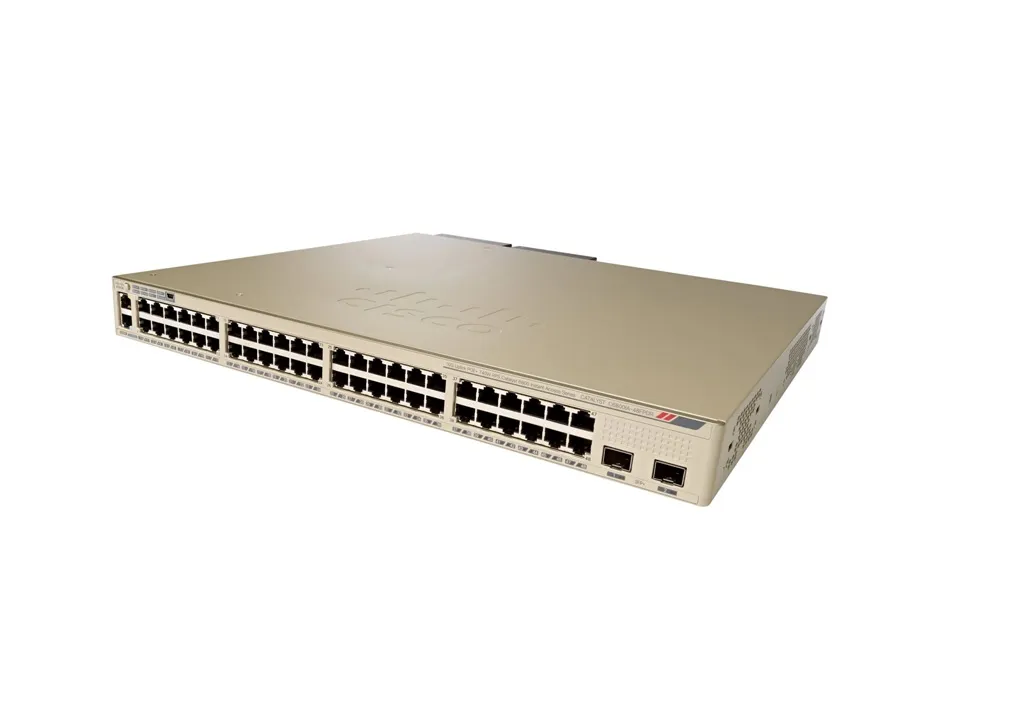

Cisco C6800IA-48FPD 48x Ports RJ-45 2x Ports SFP+ Network Switch
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
Cisco Cisco Catalyst 6800 Switches
Cisco C6800IA-48FPD 48x Ports RJ-45 2x Ports SFP+ Network Switch
- Part number
- C6800IA-48FPD
- 48 Gigabit PoE+ ports support powered access endpoints
- 2 SFP+ ports provide 10GbE uplink connectivity
- 740W PoE budget supports dense endpoint deployment
- Dual removable PSUs support redundant power operation
- Instant Access integrates with Catalyst 6800 platforms
- Gigabit access density supports enterprise campus edges
CONDITION
Ideal for
Catalyst 6800 Instant Access, PoE Campus Access, 10G Uplinks
Cisco C6800IA-48FPD Catalyst 6800 48x Ports 10Gb/s 10/100/1000Base-T RJ-45 PoE+ 2x Ports 10Gb/s 10GBase-X 10Gigabit Ethernet SFP+ Twisted Pair Layer2 Manageable Network Switch
Overview
Cisco Catalyst 6800IA C6800IA-48FPD is a 48-port Gigabit PoE+ Instant Access switch with 740W PoE budget and two SFP+ 10GbE uplink slots. It operates as an Instant Access client with centralized switching through a supported Catalyst 6800 parent switch.
Application & Use Cases
- Enterprise campus access switching
- High-density Gigabit PoE+ access networks
- Cisco IP phone deployments
- Wireless access point connectivity
- PoE-powered endpoint aggregation
- Campus edge connectivity
- Instant Access client deployments
- 10GbE access-switch uplink connectivity
- FlexStack-Plus switch deployments
- Centralized Catalyst 6800 campus architectures
Features
- 48 × 10/100/1000BASE-T PoE+ ports
- 2 × SFP+ 10GbE uplink slots
- 740W total PoE power budget
- Up to 30W PoE+ on 24 ports
- Up to 15.4W PoE output across 48 ports
- IEEE 802.3af PoE support
- IEEE 802.3at PoE+ support
- ePoE support
- Cisco prestandard PoE support
- Per-port PoE power control
- Per-port power policing
- PoE power reservation and negotiation
- Cisco Instant Access client architecture
- Cisco FlexStack-Plus capability
- Stack support for up to five IA clients
- 80Gbps bidirectional stack bandwidth
- Ethernet management port
- RJ-45 console port
- USB Mini-B console port
- Integrated power supply and fan
- External Cisco RPS 2300 support
- IEEE 802.3az Energy-Efficient Ethernet
- 1000BASE-T Gigabit Ethernet connectivity
- 10GbE SFP+ uplink connectivity
Key Specifications
- Product Family: Cisco Catalyst 6800IA
- Product Series: Catalyst 6800IA
- Product Type: Managed PoE+ Access Switch
- Downlink Ports: 48 × 10/100/1000 PoE+
- Uplink Interfaces: 2 × SFP+ 10GbE
- PoE Standard: IEEE 802.3af / 802.3at
- Maximum PoE Budget: 740W
- Maximum PoE+ Output: 30W per port
- 48-Port PoE Allocation: Up to 15.4W per port
- 24-Port PoE+ Allocation: Up to 30W per port
- Architecture: Cisco Instant Access Client
- Stacking: Cisco FlexStack-Plus
- Stack Bandwidth: 80Gbps bidirectional
- Maximum IA Client Stack: Up to 5 clients
- Management Port: Ethernet RJ-45
- Console: RJ-45 and USB Mini-B
- Power Supply: Integrated AC power supply
- Power Input: 100–240VAC, 50–60Hz
- External Redundancy: Cisco RPS 2300
- Dimensions: 1.75 × 14.50 × 17.50 in
- Weight: 12.9 lb
- Operating Temperature: -5°C to 45°C up to 1,500m
- Operating Temperature: -5°C to 40°C up to 3,000m
- Energy Efficiency: IEEE 802.3az EEE
- Mode: Instant Access Client
No compatible accessories listed for this product.
| Product Line | Catalyst |
| Product Series | 6800ia |
| Model | C6800IA-48FPD |
| Product Type | Ethernet Switch |
| Quantity of Network Ports | 50 |
| Quantity of Expansion Slots | 2 |
| Quantity of SFP+ Slots | 2 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | No |
| Console Management Port | Yes |
| Uplink Port | Yes |
| USB Port | Yes |
| Stacking Port | Yes |
| POE/POE+ Supports | PoE+ |
| Quantity of Fixed Ports/Expansion Slots | 48 |
| PoE Budget | 740 Watts |
| Media Standard | Twisted Pair,Optical Fiber |
| Technology Standard | 1000Base-T,10GBase-X |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Shared Status SFP/SFP+ Slots | Yes |
| Supported Layer Standard | Layer 2/3 |
| Manageable | Yes |
| MAC Address Table Capacity | 32000 MAC Addresses |
| Jumbo Frames | 9198 Bytes |
| Supported Rack | 1U |
| Form Factor | Rack-mountable |
| Compliance Standards | RoHS,WEEE |
| Airflow Direction | Front-to-Back Airflow |
| Supported OS | Cisco IOS Software |
| Source of Power | AC Power Supply |
| Power Rating | 1025 Watts |
| Installed PSU | 1 |
