Cisco ANT-GPS-OUT-TNC Outdoor GPS Antenna
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Antennas

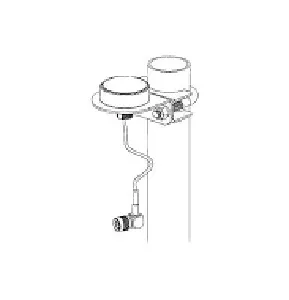

Cisco ANT-GPS-OUT-TNC Outdoor GPS Antenna
- Part number
- ANT-GPS-OUT-TNC=
- 25dB LNA gain boosts GPS signal processing
- 1575.42MHz operation targets GPS L1
- RHCP polarization supports GPS reception
- RF filter improves co-location performance
- IP67 supports outdoor industrial deployment
- 15ft cable enables remote antenna placement
CONDITION
Ideal for
GPS, Industrial IoT, Cellular Router, Outdoor Infrastructure
Cisco outdoor GPS antenna with TNC connectivity for compatible Cisco industrial wireless and cellular networking deployments
Overview
Cisco outdoor active GPS patch antenna with integrated 15-ft LMR-100A cable and right-angle TNC male connector for Cisco cellular and industrial routing platforms.
Application & Use Cases
- Industrial router GPS
- Cellular WAN positioning
- Outdoor GNSS/GPS installations
- Connected infrastructure timing/location
Features
- Active GPS patch antenna
- 1575.42-MHz GPS operation
- 25-dB LNA gain
- Integrated GPS RF filter
- 15-ft LMR-100A cable
- IP67 outdoor enclosure
Key Specifications
- Type: Active GPS patch
- Frequency: 1575.42 MHz ±5 MHz
- Impedance: 50 ohms
- VSWR: 2.0 max
- Gain: 4 dBi minimum at zenith
- Minimum Gain: 1 dBi at 10° elevation
- Pattern: Hemispherical
- Polarization: Circular RHCP
- LNA Gain: 25 dB ±2 dB
- DC Voltage: 3–5 VDC
- Current: 20mA max
- Connector: Right-angle TNC male
- Cable: 15-ft LMR-100A
- Ingress: IP67
- Temperature: -40 to 85°C
- Wind Rating: 165 mph
No compatible accessories listed for this product.
| Product Type | Antenna |
| Antenna Gain | 4 dBi |
| Impedance | 50 Ohms |
| Frequency |
|
| Form Factor | Wall Mountable |
| Application/Usage | Outdoor |
