Cisco AIR-AP3802E-BK9-RF Aironet 3800 3802E 5.20Gbit/s 802.11ac WAP
Refurbished

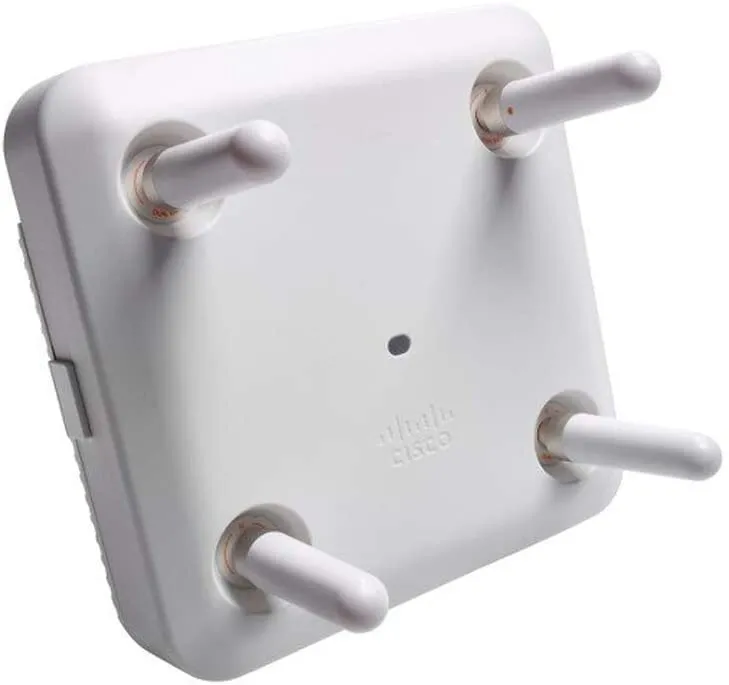

![AIR-AP3802E-BK9-RF]()
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Wireless Access Points
Cisco AIR-AP3802E-BK9-RF Aironet 3800 3802E 5.20Gbit/s 802.11ac WAP
- Part number
- AIR-AP3802E-BK9-RF
- External antennas allow application-specific RF design
- 4x4 MIMO supports three spatial streams
- mGig provides higher-speed wired AP connectivity
- MU-MIMO supports simultaneous multi-client transmission
- CleanAir provides RF interference visibility
- Wave 2 supports wide-channel wireless operation
CONDITION
Ideal for
Ruggedized Access Points, Challenging Environments, Enterprise WLAN
Cisco AIR-AP3802E-BK9-RF Aironet 3800 Series 3802E 5.20Gbit/s 802.11ac 2.4/5GHz 1x Port 5GBase-T RJ-45 1x Port RJ-45 4x External Antennas Wireless Access Point
Overview
Cisco Aironet 3802E Series outdoor/challenging-environment 802.11ac Wave 2 AP with external antennas, 4x4:3 MIMO and multigigabit Ethernet. B is the regulatory domain.
Application & Use Cases
- Indoor challenging environments
- External-antenna WLAN deployments
- High-density enterprise wireless
- Industrial and specialized coverage
Features
- 802.11ac Wave 2
- 4x4:3 MIMO
- External antenna design
- mGig Ethernet
- CleanAir
- MU-MIMO
Key Specifications
- Wireless: 802.11a/b/g/n/ac
- Wi-Fi: 802.11ac Wave 2
- MIMO: 4x4
- Spatial Streams: 3
- Antenna: External
- Radio Bands: 2.4GHz/5GHz
- Ethernet: Multigigabit
- MU-MIMO: Supported
- CleanAir: Supported
- Beamforming: Supported
- Channel Width: Up to 160MHz
- CAPWAP: Supported
- Regulatory Domain: B
- Deployment: Challenging environment
No compatible accessories listed for this product.
| Product Line | Aironet |
| Product Series | 3800 |
| Model | 3802E |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac |
| ISM Frequency Band | Yes |
| UNII Frequency Band | Yes |
| Wireless Data Rate | 5.2 |
| Quantity of Total Antennas | 4 |
| Quantity of Exterior Antennas | 4 |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Wi-Fi Generation | Wi-Fi 5 |
| Frequency |
|
| Ethernet Standard | 5 Gigabit Ethernet |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 2 |
| POE/POE+ Supports | PoE+ |
| VGA Port | No |
| HDMI Port | No |
| USB Port | Yes |
| Console Management Port | Yes |
| Powerline Port | No |
| PoE Power Distribution Port | No |
| Quantity of Ethernet WAN Ports (RJ-45/SFP/SFP+) | 1 |
| Form Factor | Ceiling Mount |
| PoE Power Distribution Port | No |
