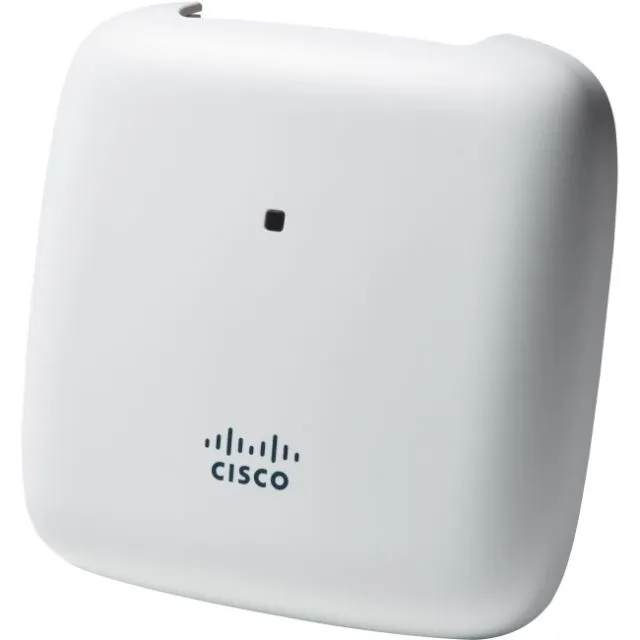

Cisco AIR-AP1815I-B-K9 Aironet 1815i 2x2 Access Point
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Wireless Access Points
Cisco AIR-AP1815I-B-K9 Aironet 1815i 2x2 Access Point
- Part number
- AIR-AP1815I-B-K9
- Provides 802.11ac Wave 2 wireless access
- Supports dual-band enterprise WLANs
- Provides integrated internal antennas
- Supports compact indoor deployments
- Enables centralized wireless management
- Supports high-density client connectivity
CONDITION
Ideal for
IDEAL FOR: Indoor Wi-Fi, Campus Access, Enterprise WLAN
Cisco AIR-AP1815I-B-K9 Aironet 1815i 802.11a/b/g/n/ac Wave 2 dual-band 2x2:2 MU-MIMO internal antennas 1x Gigabit Ethernet PoE Access Point
Overview
Cisco Aironet AIR-AP1815I-B-K9 is an indoor 1815i wireless access point with integrated antennas, 802.11ac Wave 2 radios and 2x2:2 MU-MIMO capability.
Application & Use Cases
- Enterprise indoor wireless networks
- Campus WLAN access
- Office wireless connectivity
- Education and institutional WLANs
- Branch-office deployments
- Wall- or ceiling-mounted installations
- 802.11ac Wave 2 client access
- Controller-managed WLAN environments
Features
- Aironet 1815i platform
- 802.11a/b/g/n/ac Wave 2
- Concurrent 2.4 GHz and 5 GHz radios
- 2x2:2 spatial-stream configuration
- MU-MIMO support
- Integrated antennas
- 10/100/1000BASE-T uplink
- 802.3af/at PoE support
- Bluetooth Low Energy support
Benefits
- Supports Wave 2 wireless clients
- Provides integrated antenna simplicity
- Supports concurrent dual-band operation
- Fits compact indoor deployments
- Supports PoE-powered installation
- Enables enterprise WLAN deployment
Key Specifications
- Product Family: Cisco Aironet 1815i
- Product Type: Indoor Wireless Access Point
- Wireless Standard: 802.11a/b/g/n/ac Wave 2
- 2.4 GHz Radio: 2TX × 2RX
- 5 GHz Radio: 2TX × 2RX
- Spatial Streams: 2x2:2
- Antenna: Internal
- Uplink: 10/100/1000BASE-T
- PoE: 802.3af/at
- Management Modes: Unified, Sniffer, Monitor and FlexConnect
- Bluetooth: BLE 4.0
- Regulatory Domain: B
No compatible accessories listed for this product.
| Product Line | Aironet |
| Product Series | 1815 |
| Model | 1815i |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth Version | Bluetooth 4.1 |
| ISM Frequency Band | Yes |
| UNII Frequency Band | Yes |
| Wireless Data Rate | 867 |
| Quantity of Total Antennas | 2 |
| Quantity of Interior Antennas | 2 |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Wi-Fi Generation | Wi-Fi 5 |
| Frequency |
|
| Ethernet Standard | Gigabit Ethernet |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 1 |
| POE/POE+ Supports | PoE+ |
| VGA Port | No |
| HDMI Port | No |
| USB Port | No |
| Console Management Port | Yes |
| Powerline Port | No |
| PoE Power Distribution Port | No |
| Quantity of Ethernet WAN Ports (RJ-45/SFP/SFP+) | 1 |
| Ethernet Port (RJ-45) | Yes |
| Length | 6 Inches |
| Form Factor | Ceiling Mount |
| Compliance Standards | RoHS,WEEE |
| PoE Power Distribution Port | No |
