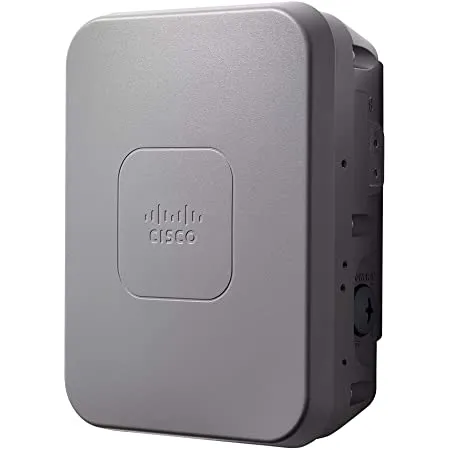

Cisco AIR-AP1562I-EK9-RF 1x 1G PoE 1xSFP 3x3 MIMO 802.11ac AP
Refurbished
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Wireless Access Points
Cisco AIR-AP1562I-EK9-RF 1x 1G PoE 1xSFP 3x3 MIMO 802.11ac AP
- Part number
- AIR-AP1562I-EK9-RF
- Internal antennas simplify outdoor AP installation
- Low-profile design supports exterior mounting
- Wave 2 supports higher-efficiency wireless access
- Mesh provides wireless outdoor backhaul capability
- CAPWAP enables centralized WLAN management
- Dual-band operation supports enterprise WLAN clients
CONDITION
Ideal for
Outdoor Access Points, Industrial Outdoor WLAN, Campus Perimeter
Cisco AIR-AP1562I-EK9-RF Aironet 1560 Series 1562I outdoor AP with 10/100/1000BASE-T PoE RJ-45 port 1xSFP 3x3 MIMO 802.11ac Wave 2 integrated semi-omnidirectional antennas IP67 Wireless Access Point
Overview
Cisco Aironet 1562I low-profile outdoor 802.11ac Wave 2 access point with internal antennas. Cisco identifies 1562I as the internal-antenna outdoor model; E is the regulatory domain.
Application & Use Cases
- Outdoor campus coverage
- Industrial wireless networks
- Municipal outdoor WLAN
- Transportation wireless coverage
Features
- 802.11ac Wave 2
- Internal antennas
- Low-profile outdoor enclosure
- Wireless mesh support
- Controller-based management
Key Specifications
- Wireless: 802.11a/b/g/n/ac
- Wi-Fi: 802.11ac Wave 2
- Deployment: Outdoor
- Antenna: Internal
- Radio Bands: 2.4GHz/5GHz
- Architecture: Controller based
- Mesh: Supported
- CAPWAP: Supported
- Design: Low-profile outdoor
- Regulatory Domain: E
- Series: Aironet 1562
- RF Variant: RF suffix
No compatible accessories listed for this product.
| Product Line | Aironet |
| Product Series | 1560 |
| Model | 1562I |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac |
| ISM Frequency Band | Yes |
| UNII Frequency Band | Yes |
| Wireless Data Rate | 1.3 |
| Quantity of Total Antennas | 3 |
| Quantity of Interior Antennas | 3 |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Wi-Fi Generation | Wi-Fi 5 |
| Frequency |
|
| Ethernet Standard | Gigabit Ethernet |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 1 |
| POE/POE+ Supports | PoE+ |
| VGA Port | No |
| HDMI Port | No |
| USB Port | No |
| Console Management Port | Yes |
| Powerline Port | No |
| PoE Power Distribution Port | No |
| Quantity of Ethernet WAN Ports (RJ-45/SFP/SFP+) | 1 |
| Length | 9.0 Inches |
| Form Factor | Outdoor |
| PoE Power Distribution Port | No |
