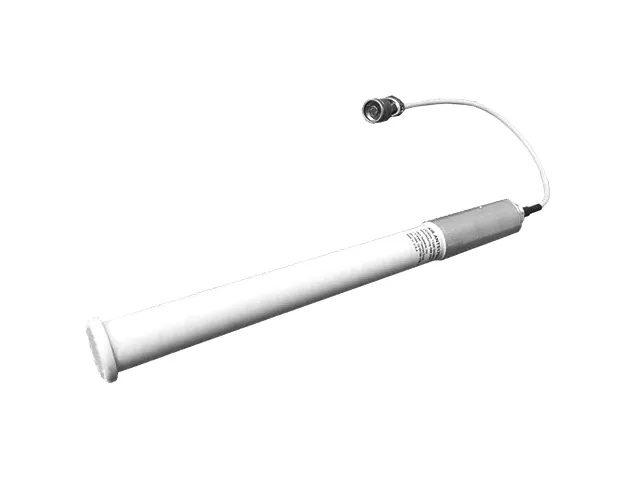

Cisco AIR-ANT5175V-N Aironet 5GHz 7.5dBi Omni Antenna
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Antennas
Cisco AIR-ANT5175V-N Aironet 5GHz 7.5dBi Omni Antenna
- Part number
- AIR-ANT5175V-N=
- 7.5dBi 5GHz omnidirectional antenna
- Operates across 4900–5850MHz
- 50-ohm nominal input impedance
- N-male connector interface
- Linear polarization with 16° E-plane beamwidth
- Designed for Cisco Aironet 1500 outdoor mesh APs
CONDITION
Ideal for
Outdoor Wireless, Aironet 1500 Mesh, 5GHz Omnidirectional Coverage, Utility WLAN
Cisco Aironet 5-GHz 75-dBi omnidirectional antenna with N-type connectivity for compatible outdoor wireless deployments
Overview
Cisco Aironet 7.5-dBi omnidirectional outdoor antenna designed for the Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Point, using a 5GHz omnidirectional colinear array.
Application & Use Cases
- Outdoor 5GHz wireless mesh networks
- Aironet 1500 outdoor mesh deployments
- Omnidirectional RF coverage
- Outdoor point-to-multipoint coverage
- Legacy Cisco outdoor wireless infrastructure
Features
- 7.5-dBi maximum nominal gain
- 4900–5850MHz operating range
- Omnidirectional colinear array
- Linear polarization
- N-Male connector
- Outdoor-rated construction
Benefits
- Omnidirectional pattern supports broad outdoor coverage
- 7.5-dBi gain supports extended 5GHz links
- Wide 4900–5850MHz operating range
- N-Male connector simplifies compatible AP connection
- Outdoor design supports mesh deployments
- Designed specifically for Aironet 1500 mesh APs
Key Specifications
- Product Type: Outdoor omnidirectional antenna
- Frequency Range: 4900–5850 MHz
- Gain: 6.5 dBi at 4900–5000 MHz; 7.5 dBi at 5400–5850 MHz
- VSWR Bandwidth: 4900–5850 MHz at 2.0:1
- Impedance: 50 Ohms
- Polarization: Linear
- E-Plane Beamwidth: 16°
- H-Plane Pattern: Omnidirectional
- Connector: N-Male
- Length: 12.0 in. (30.5 cm)
- Operating Temperature: -30°C to 70°C
- Wind Rating: 100 mph; 165 mph gusts
