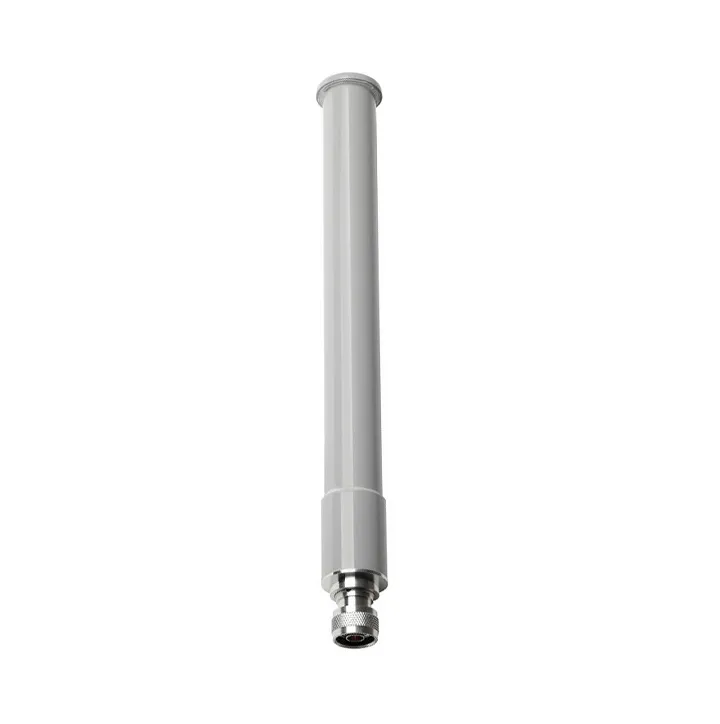

Cisco AIR-ANT2547V-N Aironet 2.4/5GHz 4/7dBi Omni
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Antennas
Cisco AIR-ANT2547V-N Aironet 2.4/5GHz 4/7dBi Omni
- Part number
- AIR-ANT2547V-N=
- Provides 4dBi 2.4GHz antenna gain
- Provides 7dBi 5GHz antenna gain
- Supports outdoor dual-band coverage
- Uses N-Male RF connector
- Provides IP66/IP67 protection
- Supports Aironet 1550 outdoor APs
CONDITION
Ideal for
Outdoor AP, Industrial Wi-Fi, Mesh, Campus Outdoor
Cisco Aironet dual-band direct-mount omnidirectional antenna 4 dBi at 24 GHz 7 dBi at 5 GHz N-type connector outdoor mesh deployment
Overview
Cisco Aironet dual-band outdoor omnidirectional antenna for Aironet 1550 Series outdoor access points.
Application & Use Cases
- Outdoor Wi-Fi coverage
- Aironet 1550 outdoor APs
- Industrial wireless
- Outdoor mesh networks
- Municipal and campus WLAN
Features
- 2.4GHz and 5GHz operation
- Colinear omnidirectional design
- N-Male connector
- IP66/IP67 protection
- Outdoor temperature range
Key Specifications
- Frequency: 2400–2483 / 5150–5875MHz
- Gain: 4dBi @ 2.4GHz; 7dBi @ 5GHz
- Type: Omni-directional colinear
- Connector: N-Male
- Impedance: 50 Ohms
- Length: 11.1in
- Protection: IP66/IP67
- Temperature: -40°C to 85°C
- Wind: 100mph operational / 165mph survival
