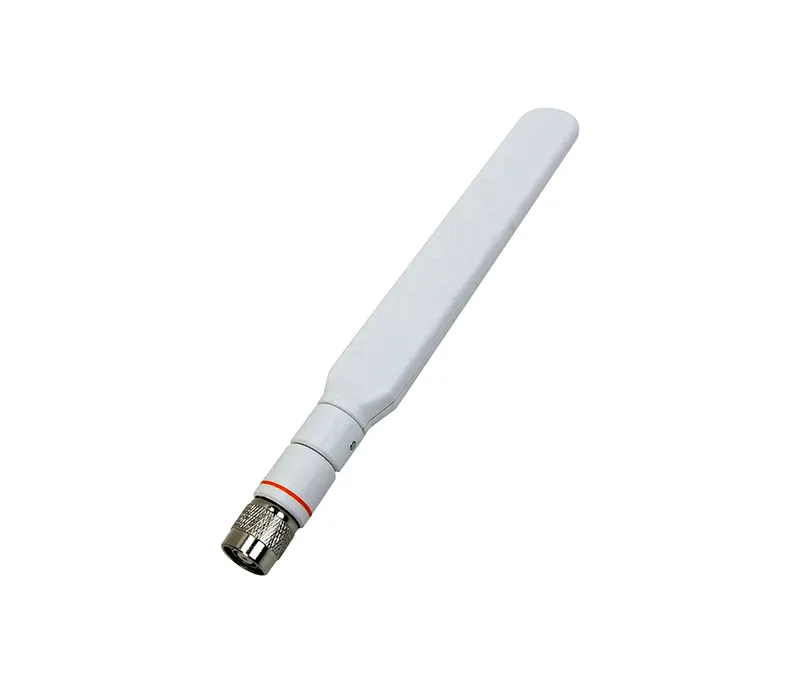

Cisco AIR-ANT2524DW-R Aironet 2.4/5GHz 2/4dBi White Dipole
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Antennas
Cisco AIR-ANT2524DW-R Aironet 2.4/5GHz 2/4dBi White Dipole
- Part number
- AIR-ANT2524DW-R=
- Provides 2 dBi gain in the 2.4 GHz wireless band
- Provides 4 dBi gain in the 5 GHz wireless band
- Uses an RP-TNC plug for compatible Cisco APs
- Supports simultaneous dual-band wireless operation
- Provides omnidirectional azimuth radiation coverage
- Uses an articulated adjustable antenna base design
CONDITION
Ideal for
Campus Wi-Fi, Indoor WLAN, Aironet APs, Dual-Band Coverage, Enterprise Wireless
Cisco Aironet dual-band white dipole antenna 2 dBi at 24 GHz 4 dBi at 5 GHz RP-TNC 2400–2500/5150–5850 MHz indoor omnidirectional coverage
Overview
Cisco Aironet dual-band dipole antenna with white radome and RP-TNC connector, designed for simultaneous 2.4-GHz and 5-GHz wireless access point operation.
Application & Use Cases
- Indoor enterprise WLAN
- Aironet external-antenna APs
- Campus wireless deployments
- Dual-band RF coverage
- Replacement antenna installations
Features
- Dual-band dipole antenna
- 2 dBi gain at 2.4 GHz
- 4 dBi gain at 5 GHz
- RP-TNC connector
- White radome
- Articulated adjustable base
Key Specifications
- Antenna Type: Dual-band dipole
- Frequency: 2.4–2.5 / 5.15–5.85 GHz
- Gain: 2 dBi / 4 dBi
- Connector: RP-TNC plug
- Impedance: 50 ohms
- VSWR: <2:1
- Beamwidth: Omnidirectional azimuth
- Length: 6.63 in / 168.5 mm
- Environment: Indoor/office
- Radome: White
