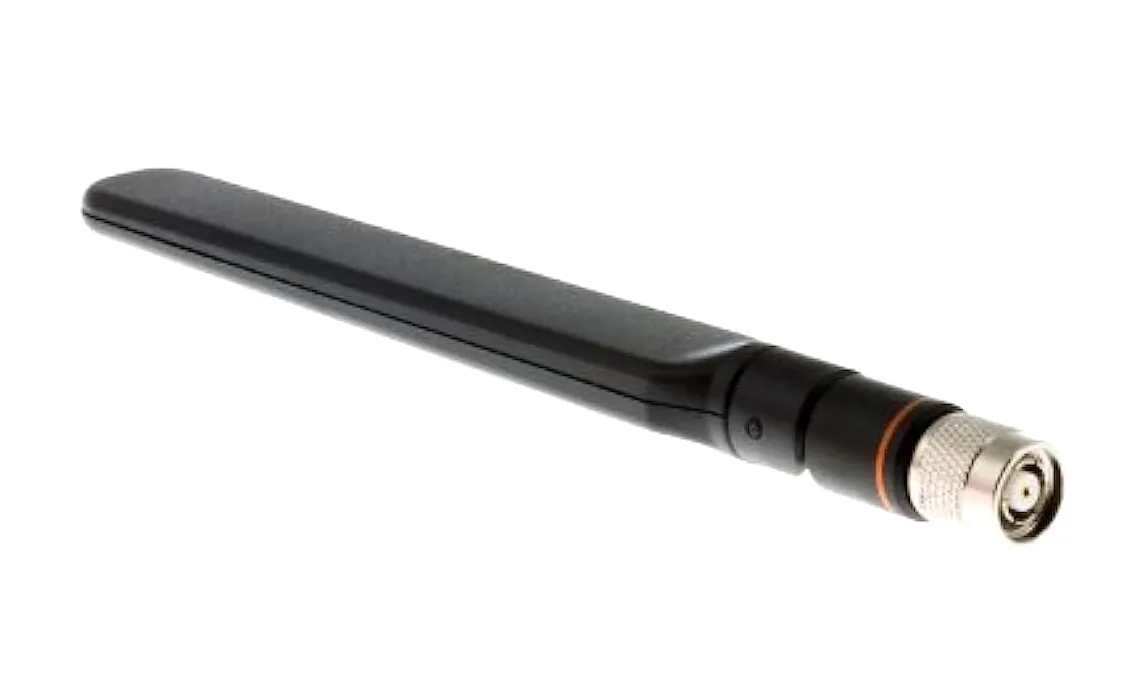

Cisco AIR-ANT2524DB-R Aironet 2.4/5GHz 2/4dBi Dipole Antenna
New
Photos are representative. Refurbished units may show light cosmetic wear; all ports and PSUs tested.
CiscoCisco Antennas
Cisco AIR-ANT2524DB-R Aironet 2.4/5GHz 2/4dBi Dipole Antenna
- Part number
- AIR-ANT2524DB-R=
- Provides 2 dBi gain at 2.4 GHz
- Provides 4 dBi gain at 5 GHz
- Uses RP-TNC connectivity for compatible Cisco APs
- Supports dual-band simultaneous wireless operation
- Provides omnidirectional indoor RF coverage
- Uses articulated mounting for antenna positioning
CONDITION
Ideal for
Campus Wi-Fi, Indoor WLAN, Aironet APs, RF Coverage, Enterprise Wireless
Cisco AIR-ANT2524DB-R dual-band dipole antenna with 2-dBi gain at 24 GHz and 4-dBi gain at 5 GHz plus RP-TNC connectivity
Overview
Cisco Aironet dual-band black dipole antenna with RP-TNC connector for compatible Cisco wireless access points.
Application & Use Cases
- Indoor enterprise WLAN
- Aironet external-antenna APs
- Dual-band RF coverage
- Campus wireless deployments
Features
- 2.4/5 GHz dual-band operation
- Omnidirectional indoor coverage
- RP-TNC connector
- Black radome
- 90-degree articulation
Key Specifications
- Type: Dual-band dipole
- Frequency: 2400–2500 / 5150–5850 MHz
- Gain: 2 dBi at 2.4 GHz; 4 dBi at 5 GHz
- Connector: RP-TNC plug
- Impedance: 50 ohms
- VSWR: <2:1
- Length: 6.63 in / 168.5 mm
- Color: Black
- Environment: Indoor/office
